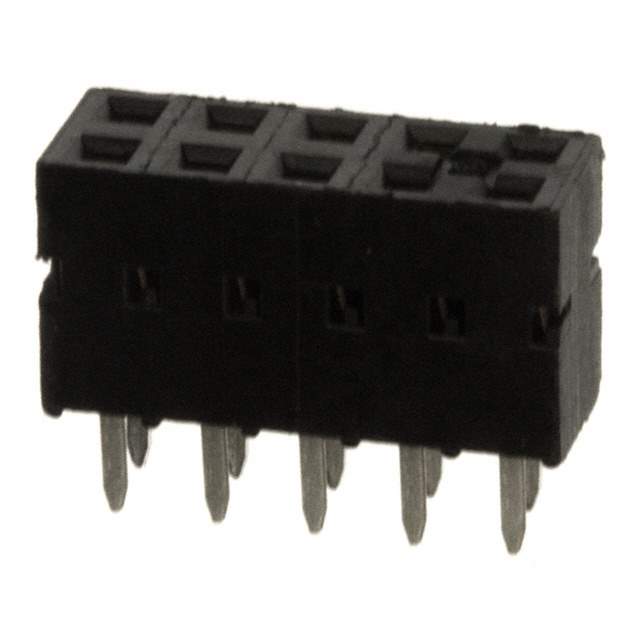

Same model may have multiple batches, images only for reference.

68683-305LF

Name: 68683-305LF
Brand: Amphenol
SKU: 959322
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	68683-305LF
Manufacturer	Amphenol
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS 0.1 GOLD PCB / 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Amphenol ICC (FCI)
Series	Dubox™
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.276" (7.00mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-65°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Voltage Rating	1000V
Applications	Automotive, General Purpose, Industrial, Telecommunications
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	68683
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	609-3573,68683305LF,68683-305LF-ND,2266-68683-305LF
Standard Package	45
Win Source Part Number	959322-68683-305LF
Ultra Librarian 3D Model	Ultra Librarian 68683-305LF CAD Model

Description

The 959322-68683-305LF is a rectangular connector from Amphenol ICC (FCI).

Series: Dubox™
Positions: 10
Connector Type: Receptacle
Contacts: Female Socket
Voltage Rating: 1000V
Pitch-Mating: 0.100" (2.54mm)
Alternative Parts: 215307-5, SSW-105-01-G-D, 76342-305LF, 87606-305LF, 215309-5, and 71991-305LF
