Same model may have multiple batches, images only for reference.

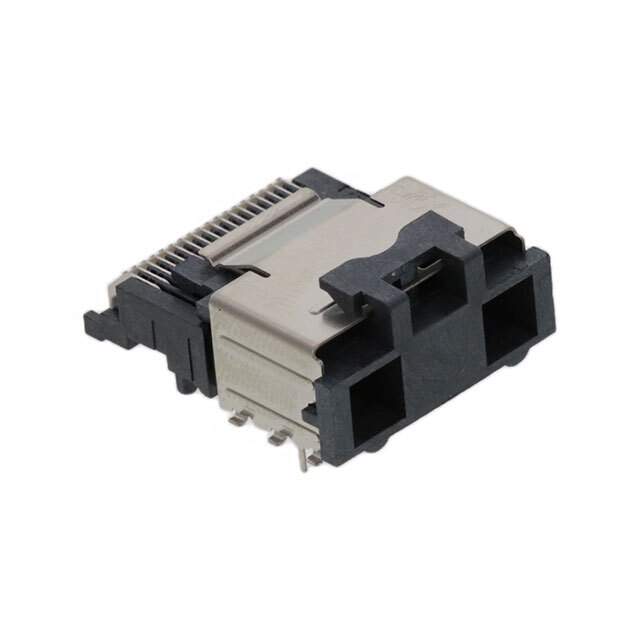

75783-0126 Real Image
Same model may have multiple batches, images only for reference.

75783-0126

Part No 75783-0126
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description Conn I-Pass RCP 36 POS 0.8mm Solder RA SMD 36 Terminal 1 Port Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Mini-SAS, Receptacle
Contact Plating Gold
Current Rating 500 mA
Depth 24.07 mm
Gender Female
Housing Color Black
Housing Material Thermoplastic
Lead Pitch 800 µm
Length 19.5 mm
Max Operating Temperature 80 °C
Max Voltage Rating (AC) 30 V
Max Voltage Rating (DC) 30 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 36
Number of Ports 1
Number of Positions 36
Number of Rows 2
Orientation Right Angle
Packaging Tape & Reel (TR)
Pitch 800 µm
Radiation Hardening No
RoHS Compliant
Termination Solder
Win Source Part Number 1204004-75783-0126
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 75783-0126 CAD Model

Description

The 75783-0126 is an electronic component that is manufactured by Molex, LLC.

  • Current Rating: 500 mA
  • Housing Color: Black
  • Number of Positions: 36
  • Operating Temperature: -40 °C to 80 °C
  • Orientation: Right Angle
  • Pitch: 800 µm
  • RoHS Compliant: Yes
  • Type: Connector
  • Gender: Female
