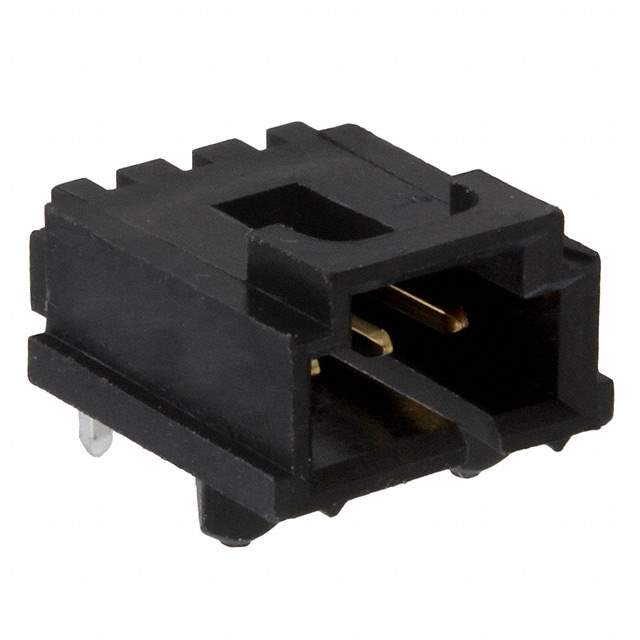

0705550072

Get a Quote

Part No	0705550072
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 3POS 2.54MM / Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.215" (5.45mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Features	Board Guide
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	250V
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Industrial, Medical
Base Product Number	070555
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	0705550072-ND,WM14787,70555-0072,070555-0072,705550072
Standard Package	1
Win Source Part Number	1332784-0705550072
Ultra Librarian 3D Model	Ultra Librarian 0705550072 CAD Model

Description

The Molex 1332784-0705550072 electronic component is a rectangular connector with male pins.

Positions: Three
Features: Board Guide
Mounting Style: Through-Hole, Right-Angle
Package: Tubes
Contact Material: Phosphor Bronze
Voltage Rating: 250V
Applications: Automotive, General Purpose, Industrial, and Medical
Insulation Color: Black
Shrouded: Four Walls
RoHS3 Compliant: Yes
Operating Temperature Range: -40°C to 105°C
