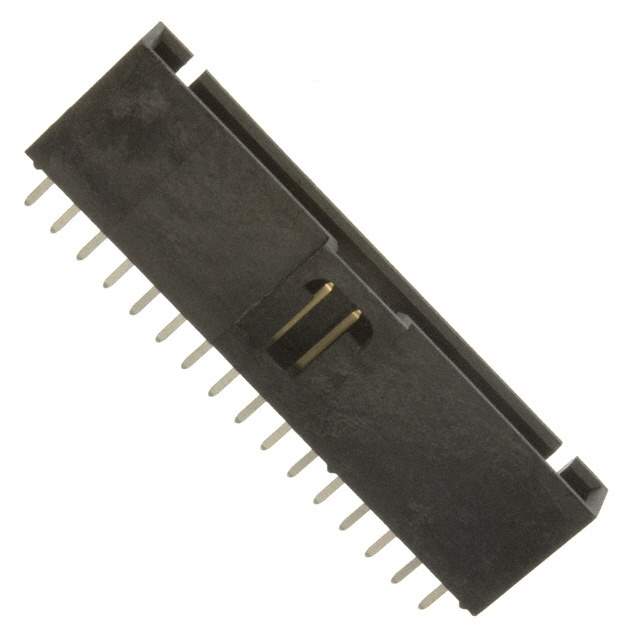

0705430015

Get a Quote

Part No	0705430015
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	SL 70543
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.470" (11.94mm)
Insulation Height	0.465" (11.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	250V
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Industrial, Medical
Base Product Number	070543
Standard Package	36
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338942-0705430015
Ultra Librarian 3D Model	Ultra Librarian 0705430015 CAD Model

Description

The Molex SL 70543 is a series of 16-position male pin headers that are suitable for use in various electronic applications.

Mfr: Molex
Series: SL 70543
Positions: 16
Win Source Part Number: 1338942-0705430015
Standard Package: 36
Shrouded: Yes, 4 Walls
Pitch: 0.100" (2.54mm)
Termination: Solder
Voltage Rating: 250V
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold
Contact Finish (Post): Tin
Insulation Material: Polyester, Glass Filled
Flammability Rating: UL94 V-0
Applications: Automotive, General Purpose, Industrial, and Medical
