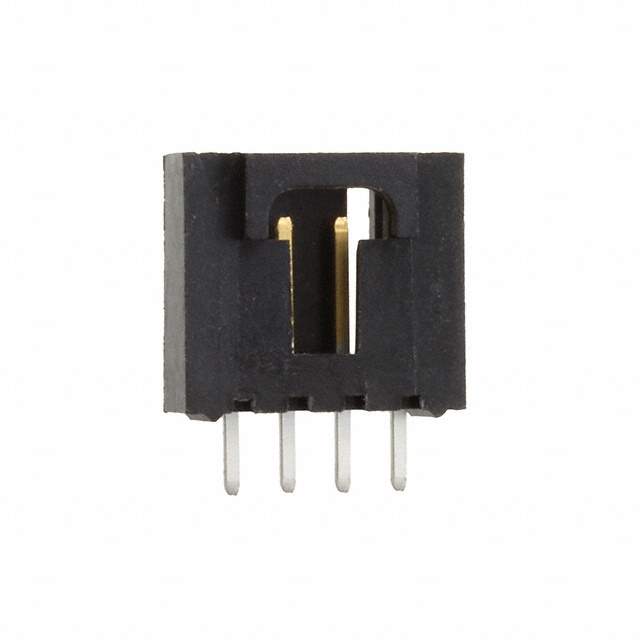

705430003 Real Image
Same model may have multiple batches, images only for reference.

705430003

Part No 705430003
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 4POS .100 VERT GOLD
Datasheet
705430003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series SL 70543
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.470" (11.94mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Industrial, Medical
Win Source Part Number 764638-705430003
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 705430003 CAD Model

Description

This electronic component is a connector with a Win Source Part Number of 764638-705430003.

  • Positions: 4
  • Mounting Type: Through Hole
  • Voltage Rating: 250V
  • Contact Material: Phosphor Bronze
  • Pitch: 0.100" (2.54mm)
  • Contact Finish (Mating): Gold
  • Contact Finish (Post): Tin
  • Gold Finish Thickness: 15μin (0.38μm)
  • Tin Finish Thickness: 74.8μin (1.90μm)
