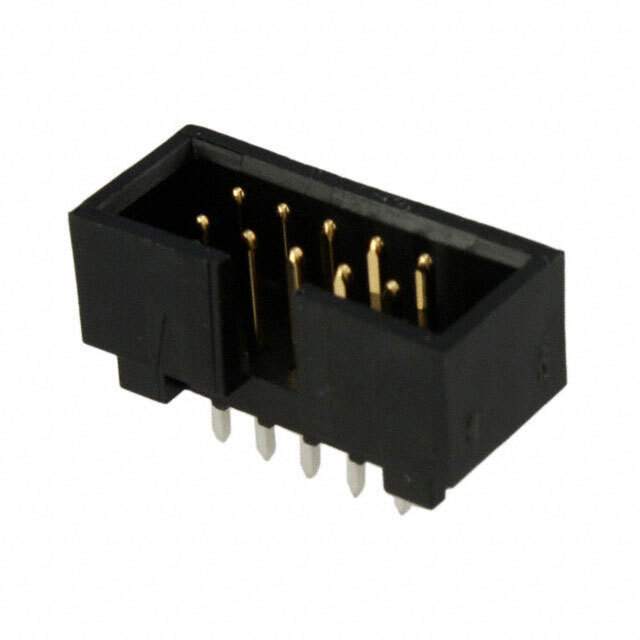

Part No 0702461002
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM / Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.135" (3.43mm)
Overall Contact Length 0.500" (12.70mm)
Insulation Height 0.365" (9.27mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Base Product Number 070246
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 070246-1002,WM9220,70246-1002,702461002,70246-1002-ND,0702461002-ND
Standard Package 1
Win Source Part Number 1332891-0702461002
Ultra Librarian 3D Model Ultra Librarian 0702461002 CAD Model

Description

The Molex 1332891-0702461002 is a 10-position male pin header connector with a keying slot.

  • Positions: 10
  • Keying Slot: Yes
  • Application: Board-to-Cable/Wire
  • Industries: Automotive, General Purpose, Lighting, Medical, Telecommunications
  • Material: Polybutylene Terephthalate (PBT) with Glass Filling
  • Pitch: 0.100" (2.54mm)
  • Shrouding: Shrouded 4-Wall
  • Contact Finish (Mating): Gold
  • Thickness (Mating): 30.0µin (0.76µm)
  • Contact Finish (Post): Tin
  • Thickness (Post): 74.8µin (1.90µm)
  • Contact Material: Phosphor Bronze
  • Voltage: 250V
  • Flammability Rating: UL94 V-0
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
