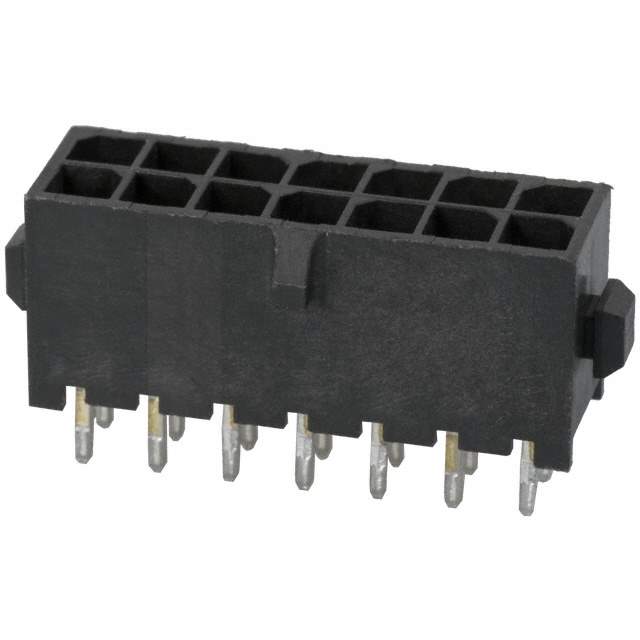

4-794630-4 Real Image
Same model may have multiple batches, images only for reference.

4-794630-4

Part No 4-794630-4
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 14POS 3MM / Connector Header Through Hole 14 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer TE Connectivity AMP Connectors
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.364" (9.25mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250V
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose
Base Product Number 794630
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 47946304,A33225,-4-794630-4-SI
Standard Package 143
Win Source Part Number 1334208-4-794630-4
Ultra Librarian 3D Model Ultra Librarian 4-794630-4 CAD Model

Description

The 1334208-4-794630-4 is a rectangular connector from TE Connectivity AMP Connectors.

  • Positions: 14
  • Pitch: 0.118" (3.00mm)
  • Voltage: 250V
  • Current: Up to 5A
  • Mounting: Board-to-cable/wire
  • Type: Male Pin Header Connector
  • Manufacturer: TE Connectivity AMP Connectors
