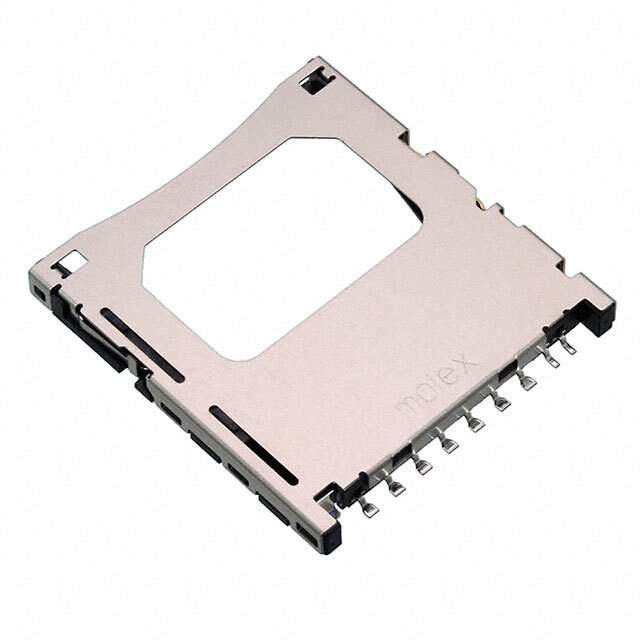

0676008002 Real Image
Same model may have multiple batches, images only for reference.

0676008002

Part No 0676008002
Manufacturer Molex, LLC
Catalog Memory Connectors - PC Card Sockets
Description CONN SD CARD PUSH-PUSH R/A SMD / 12 (9 + 3) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr Molex
Series 67600
Package Tape & Reel
Product Status Obsolete
Card Type Secure Digital - SD
Number of Positions 12 (9 + 3)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Type Surface Mount, Right Angle
Features Switch
Height Above Board 0.110" (2.80mm)
Mounting Feature Normal, Standard - Top
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Base Product Number 067600
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338301-0676008002
Ultra Librarian 3D Model Ultra Librarian 0676008002 CAD Model

Description

The Molex 1338301-0676008002 is a PC card socket connector from the 67600 series.

  • Series: 67600
  • Positions: 12, 9+3
  • Switch: Yes
  • Connector and Ejector Type: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00μin (0.051μm)
  • Packaging: Tape and Reel
  • Standard Package: 400
  • Card Type: Secure Digital (SD)
  • Insertion and Removal Methods: Push In and Push Out
  • Status: Obsolete
  • RoHS: Not RoHS Compliant
  • MSL: 1 (Unlimited)
  • REACH: REACH Unaffected
  • HTSUS: 8536.69.4040
