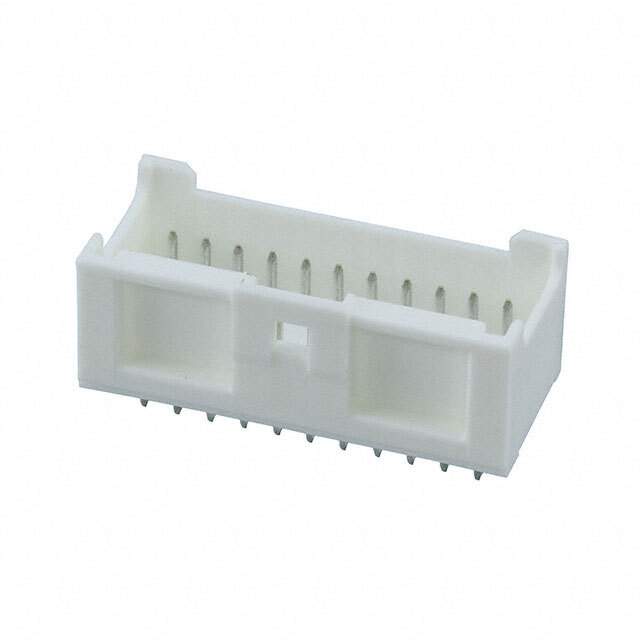

55917-2210 Real Image
Same model may have multiple batches, images only for reference.

55917-2210

Part No 55917-2210
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 2.0 WTB DUAL CONN DIP PLG HSG
Datasheet
55917-2210 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 22
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.197" (5.00mm)
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Mating 0.150" (3.81mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.366" (9.30mm)
Insulation Height 0.384" (9.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Mated Stacking Heights 13.2mm
Applications General Purpose, Industrial, Medical
Win Source Part Number 052803-55917-2210
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 55917-2210 CAD Model

Description

Description

The 55917-2210 is engineered to provide excellent functionality across a broad range of uses. Its precision engineering makes it a favorite among developers looking for dependable performance.

Applications

  • Medical equipment
  • Military electronics
  • Wireless communication systems
  • Advanced computing hardware

Features and Benefits

  • Superior precision and accuracy
  • High temperature tolerance
  • Minimal signal interference
  • Compact size for flexible application

Additional Details

Known for its efficiency, the 55917-2210 helps streamline production lines and reduce energy consumption in critical applications.
