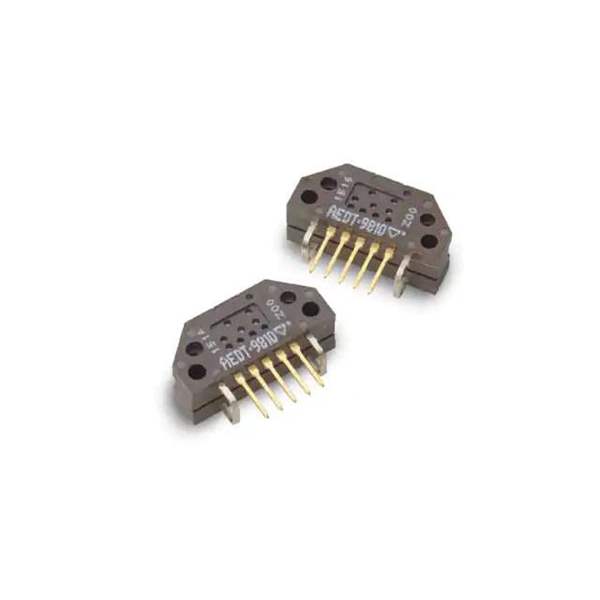

AEDT-9810-B00 Real Image
Same model may have multiple batches, images only for reference.

AEDT-9810-B00

Part No AEDT-9810-B00
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 1000PPR
Datasheet
AEDT-9810-B00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Broadcom Limited
Package Bulk
Product Status Active
Programmable Not Verified
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 1000
Voltage - Supply 4.5V ~ 5.5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Type Chassis Mount
Orientation User Selectable
Termination Style Terminal Pins
Base Product Number AEDT-9810
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 911174-AEDT-9810-B00
Ultra Librarian 3D Model Ultra Librarian AEDT-9810-B00 CAD Model

Description

The 911174-AEDT-9810-B00 is an encoder from Broadcom Limited. It belongs to the sensors, transducers - encoders category and comes in a bulk package with a standard package of 100 pieces.

  • Category: Sensors, Transducers - Encoders
  • Package: Bulk
  • Standard Package: 100 pieces
  • Output Type: Quadrature with Index (Incremental)
  • Codewheel Included: No
  • Programmable: No
  • Encoder Type: Optical
  • Pulses per Revolution: 1000
  • Voltage Supply: 4.5V to 5.5V
  • Mounting: Chassis-Mounted
  • MSL Level: 1
  • REACH: Unaffected
  • HTSUS: 8543.70.4500
  • Base Product Number: AEDT-9810
