Same model may have multiple batches, images only for reference.

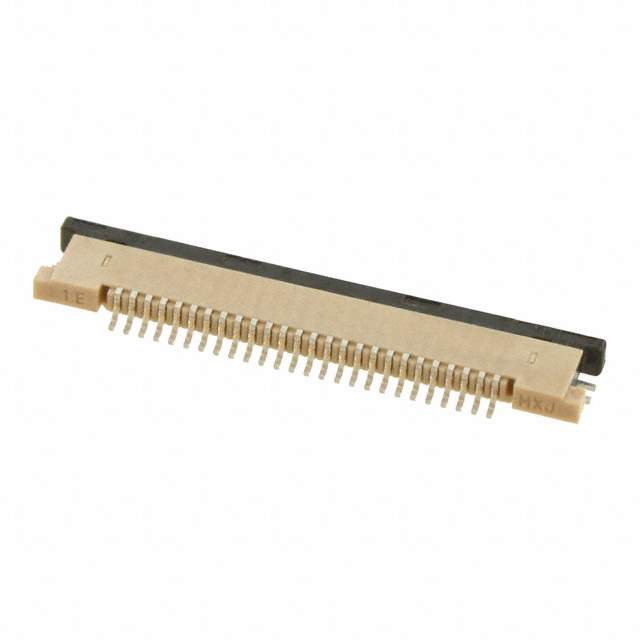

545482671 Real Image
Same model may have multiple batches, images only for reference.

545482671

Part No 545482671
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description FFC & FPC Connectors 0.5 FPC ZIF Hsg Assy 26Ckt EmbsTp Pkg
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Gold
Country of Origin JP
Current Rating 500 mA
ELV Compliant
Gender Receptacle
Housing Material Thermoplastic
Material Bronze
Mount Surface Mount
Number of Circuits 26
Number of Contacts 26
Number of Positions 26
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel
Pitch 500 µm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536694040, 8536694040
Stackable No
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 1142834-545482671
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 545482671 CAD Model

Description

The Molex, LLC 545482671 is a 26-position receptacle connector that is designed to be surface mounted.

  • Positions: 26
  • Mounting: Surface Mounted
  • Pitch: 500μm
  • Number of Rows: 1
  • Contact Material: Bronze
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Gender: Receptacle
  • Housing Material: Thermoplastic
  • Orientation: Right Angle
  • Contact Plating: Gold
  • RoHS: Compliant
  • Applications: FFC/FPC (Flat Flexible) Connectors
  • Origin: Japan
