Same model may have multiple batches, images only for reference.

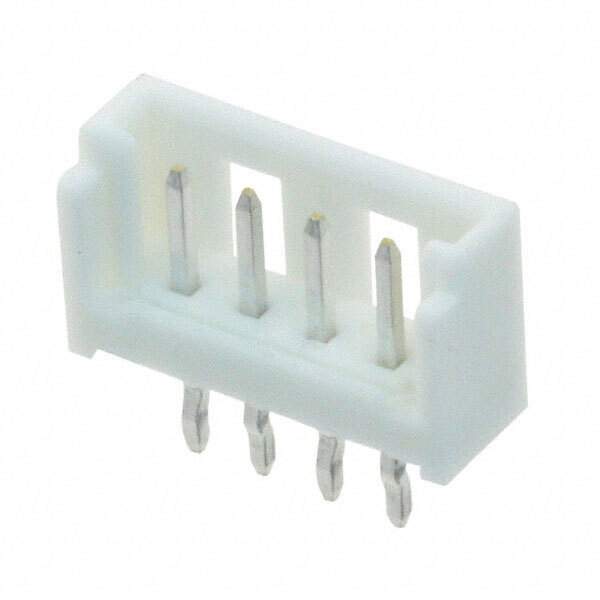

0532900480 Real Image
Same model may have multiple batches, images only for reference.

0532900480

Part No 0532900480
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2MM / Connector Header Through Hole 4 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 3 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.335" (8.51mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Natural
Base Product Number 053290
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 53290-0480-ND,053290-0480,53290-0480,0532900480-ND,532900480,WM9208
Standard Package 3,000
Win Source Part Number 1333060-0532900480
Ultra Librarian 3D Model Ultra Librarian 0532900480 CAD Model

Description

The Molex 1333060-0532900480 is a 4-position male pin header connector designed for board-to-board applications.

  • Fastening Type: Detent Lock
  • Termination: Kinked Pin Solder
  • Shrouded: 3-Wall
  • Contact Material: Brass
  • Insulation Material: Polybutylene Terephthalate (PBT) with Glass-Filled
  • Pitch: 0.079 inches (2.00mm)
  • Contact Finish: Tin
  • Contact Length: 0.335 inches (8.51mm)
  • Insulation Height: 0.236 inches (6.00mm)
  • Material Flammability Rating: UL94 V-0
  • Application: Industrial
  • RoHS3 Compliant: Yes
  • Packaging: Tray
  • Standard Package: 3,000
