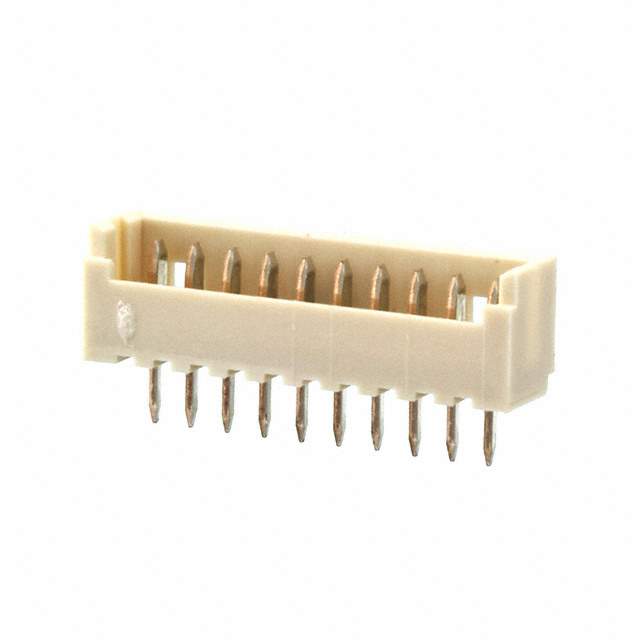

Same model may have multiple batches, images only for reference.

53047-1010

Name: 53047-1010
Brand: Molex, LLC
SKU: 1006970
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	53047-1010
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn Shrouded Header (4 Sides) HDR 10 POS 1.25mm Solder ST Thru-Hole PicoBlade™ Frame
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Body Plating	Tin
Color	Natural
Contact Gender	Male
Contact Material	Tin
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	TW
Current	1 A
Current Rating	1 A
Depth	3.2 mm
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Height	4.2 mm
Housing Color	White
Housing Material	Nylon
Insulation Resistance	100 MΩ
Lead Free	Yes
Lead Pitch	1.25 mm
Length	14.25 mm
Max Current Rating	1 A
Maximum Operating Temperature	85 °C
Max Voltage Rating (AC)	125 V
Max Voltage Rating (DC)	125.125 kV
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	10
Number of Contacts	10
Number of Pins	10
Number of Poles	10
Number of Positions	10
Number of Rows	1
Orientation	Vertical
Pitch	1.25 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	Solder
Voltage	125 V
Voltage Rating	125 V
Voltage Rating (AC)	125 V
Voltage Rating (DC)	125 V
Working Voltage	125 V
Win Source Part Number	1006970-53047-1010
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 53047-1010 CAD Model

Alternative Products

Description

The Molex 1006970-53047-1010 is a circular connector housing component that is widely used in various electronic devices.

Positions: 10
Pitch: 1.25 mm
Color: Natural
Row: Single
Termination: Solder
Contact Material: Tin
Voltage Rating: 125 V
Current Rating: 1 A
Material: Nylon
Height: 4.2 mm
