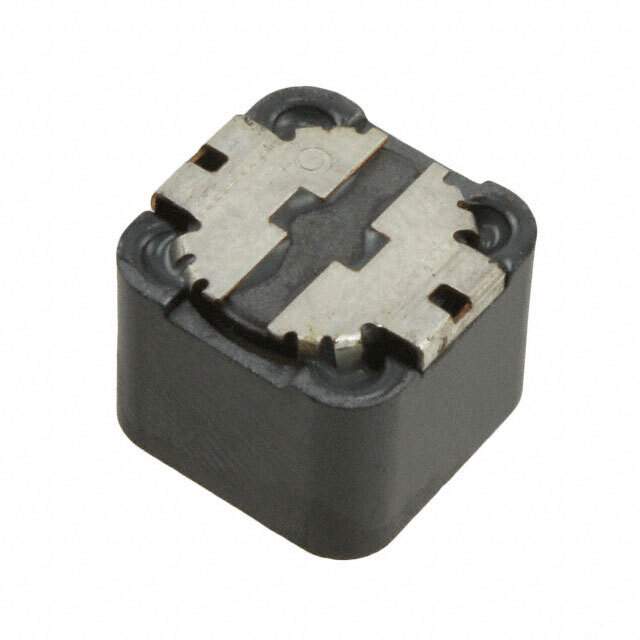

Same model may have multiple batches, images only for reference.

SRR1210-270M

Name: SRR1210-270M
Brand: Bourns Inc.
SKU: 1095967
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR1210-270M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 27UH 5A 40 MOHM SMD / 27 µH Shielded Drum Core, Wirewound Inductor 5 A 40mOhm Max Nonstandard
Datasheet	SRR1210-270M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR1210
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	27 µH
Tolerance	±20%
Current Rating (Amps)	5 A
Current - Saturation (Isat)	4.2A
Shielding	Shielded
DC Resistance (DCR)	40mOhm Max
Q @ Freq	16 @ 2.52MHz
Frequency - Self Resonant	6.5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Base Product Number	SRR1210
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRR1210-270M-ND,SRR1210270M,SRR1210-270MTR,SRR1210-270MDKR,SRR1210-270MCT
Standard Package	250
Win Source Part Number	1095967-SRR1210-270M
Ultra Librarian 3D Model	Ultra Librarian SRR1210-270M CAD Model

Alternative Products

Description

The Bourns Inc. SRR1210-270M is a fixed inductor from the inductors, coils, chokes category.

Type: Drum core, wirewound
Shielded: Shielded
Inductance: 27 µH
Height - Seated (Max): 0.394" (10.00mm)
Mounting: SMD (SMT)
Tolerance: ±20%
Material - Core: Ferrite
Q @ Freq: 16 @ 2.52MHz
Frequency - Self Resonant: 6.5MHz
DC Resistance (DCR): 40mOhm Max
Current Rating (Amps): 5A
MSL Level: 1 (Unlimited)
REACH: REACH unaffected.50.4000
