Same model may have multiple batches, images only for reference.

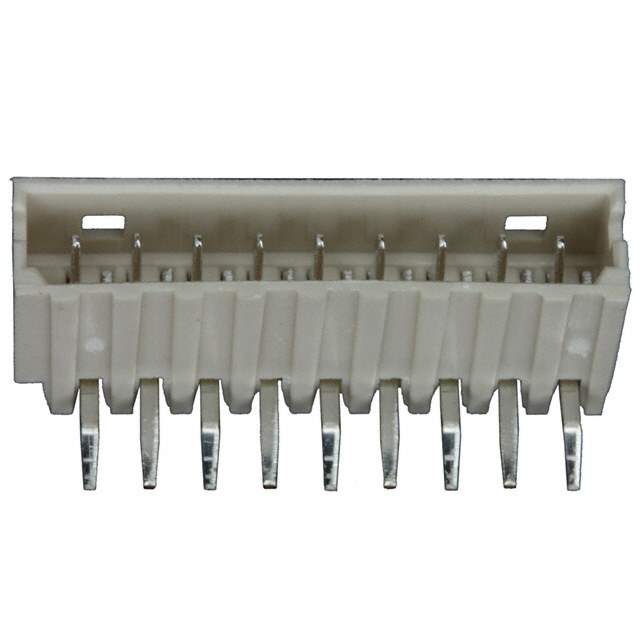

530150910 Real Image
Same model may have multiple batches, images only for reference.

530150910

Part No 530150910
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 2MM 9POS RT ANG TIN
Datasheet
530150910 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 9
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.122" (3.10mm)
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.183" (4.65mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35μin (0.90μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color White
Applications General Purpose, Telecommunications
Win Source Part Number 1006047-530150910
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 530150910 CAD Model

Description

The Molex Electronic Component is a connector/interconnect that is manufactured by Molex, LLC.

  • Manufacturer: Molex, LLC
  • Win Source Part Number: 1006047-530150910
  • Package: bulk
  • Positions: nine
  • Type: header connector
  • Contact Type: male blade
  • Positions Loaded: all
  • Row Count: single
  • Termination: kinked pin, solder
  • Fastening Type: detent lock
  • Material Flammability Rating: UL94 V-0
  • Applications: general purpose, telecommunications
  • Mounting: through hole, right angle
  • Insulation Material: polyamide (PA66), nylon 6/6, glass filled
  • Style: board to cable/wire
  • Pitch - Mating: 0.079" (2.00mm)
  • Contact Finish - Mating: tin
  • Contact Finish Thickness - Mating: 35μin (0.90μm)
  • Contact Finish - Post: tin
  • Contact Finish Thickness - Post: -
  • Insulation Color: white
  • Shrouding: shrouded - 4 wall
  • Contact Length - Post: 0.138" (3.50mm)
  • Insulation Height: 0.183" (4.65mm)
  • Contact Shape: rectangular
  • Contact Length - Mating: 0.122" (3.10mm)
  • Supply and Demand Status: balanced
