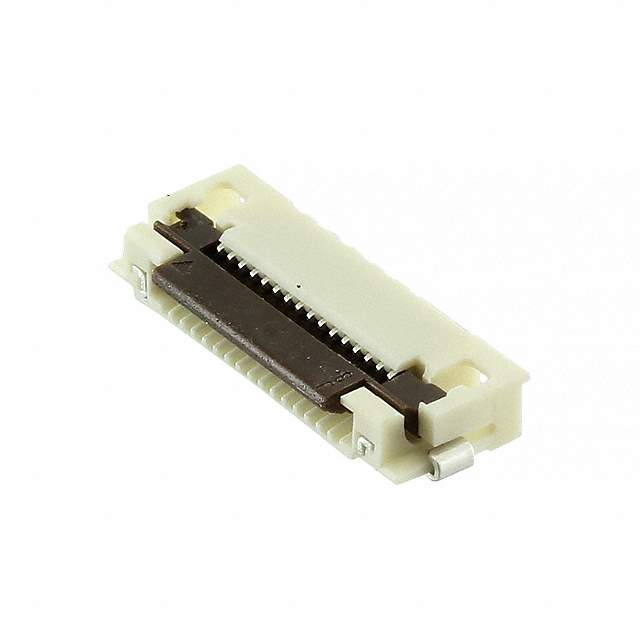

528921633 Real Image
Same model may have multiple batches, images only for reference.

528921633

Part No 528921633
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Molex
Series Easy-On 52892
Package Tape & Reel
Product Status Last Time Buy
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 16
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight, Tapered
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Housing Material Polyamide (PA), Nylon, Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 39.4µin (1.00µm)
Housing Color White
Actuator Color Brown
Mating Cycles 20
Base Product Number 052892
Other Names 052892-1633,0528921633,WM10604CT,52892-1633,WM10604DKR,0052892-1633,WM10604TR,528921633
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1294085-528921633
Ultra Librarian 3D Model Ultra Librarian 528921633 CAD Model

Description

This Molex LLC FFC, FPC connector is a surface-mount, right-angle connector with 16 contacts and a pitch of 0.020 inches (0.50mm).

  • Mounting: Surface-mount, Right-angle
  • Contacts: 16
  • Pitch: 0.020 inches (0.50mm)
  • Feature: Solder retention
  • Feature: Zero insertion force (ZIF)
  • Locking: Flip lock
  • Contact Material: Phosphor bronze
  • Contact Finish: Tin bismuth
  • Housing Material: Polyamide (PA), nylon, and glass filled
  • Actuator Material: Polyphenylene sulfide (PPS), and glass filled
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Temperature Range: -40 °C to 85 °C
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
