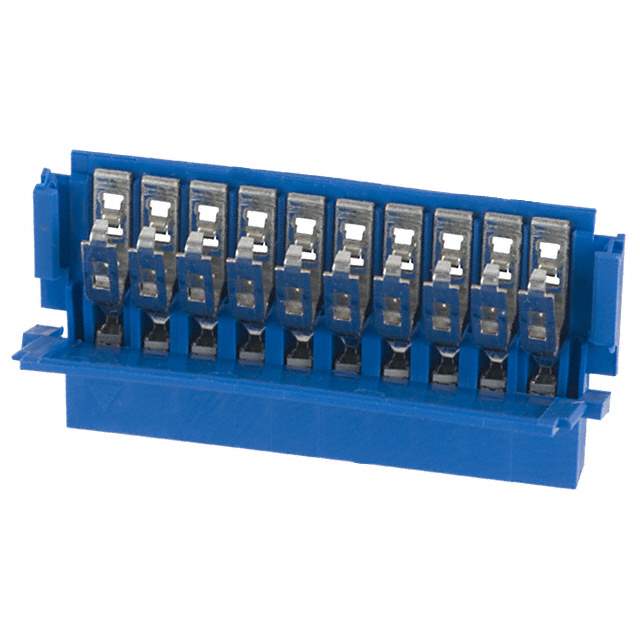

The Clincher™ series FFC/FPC connector is a 10-position receptacle connector with a pitch of 0.100" (2.54mm).

• Features: Solder retention and zero insertion force (ZIF)
• Contact Finish: Tin with a thickness of 100.0µin (2.54µm)
• Contact Material: Copper nickel alloy
• Voltage Rating: 500V
• Current Rating: 2A
• Housing Material: Thermoplastic
• Flammability Rating: UL94 V-0
• Locking Feature: Slide lock
• Cable End Type: Notched
• Flat Flex Types: FFC and FPC
• Mounting: Free hanging (in-line)
• Temperature Range: -65°C to 105°C
• Package: 42 standard connectors
• Mating Cycle: 100
