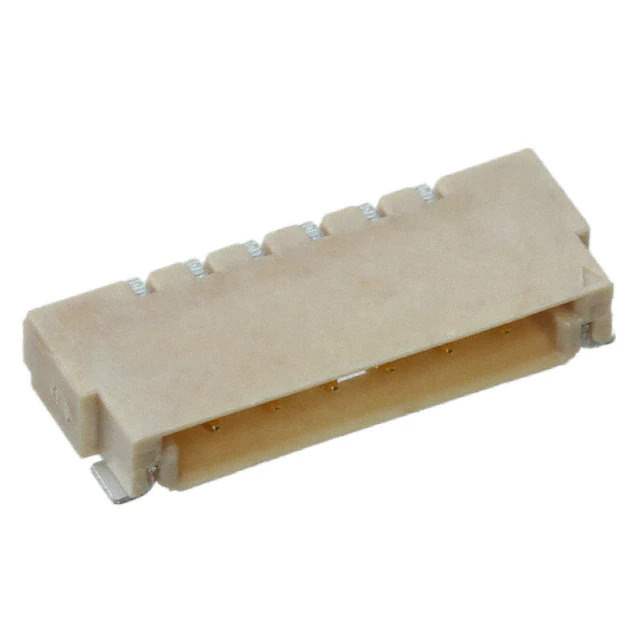

FI-S6P-HFE-E1500 Real Image
Same model may have multiple batches, images only for reference.

FI-S6P-HFE-E1500

Part No FI-S6P-HFE-E1500
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 6POS 1.25MM / Connector Header Surface Mount, Right Angle 6 position 0.049" (1.25mm)
Datasheet
FI-S6P-HFE-E1500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr JAE Electronics
Series FI
Package Tape & Reel
Product Status Active
Connector Type Receptacle
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Friction Lock
Insulation Height 0.071" (1.80mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish - Post Tin or Tin-Alloy
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Solder Retention
Temperature Range - Operating -40°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A per Contact
Voltage Rating 200V
Base Product Number FI-S6
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 849130-FI-S6P-HFE-E1500
Ultra Librarian 3D Model Ultra Librarian FI-S6P-HFE-E1500 CAD Model

Description

The FI series from JAE Electronics offers a versatile solution for rectangular connector headers. The FI-S6P-HFE-E1500 is a 6-position header with male pins.

  • Features: Solder Retention, Friction Lock
  • Contact Material: Copper Alloy
  • Contact Finish (Mating): Gold
  • Post Contact Finish: Tin or Tin-Alloy
  • Mounting Type: Surface Mount, Right Angle
  • Design: Shrouded 4-Wall
  • Voltage Rating: 200V
  • Current Rating: 1A per contact
  • Application: Board to Cable/Wire
  • Standard Package: 1,500 pcs
  • ECCN: EAR99
