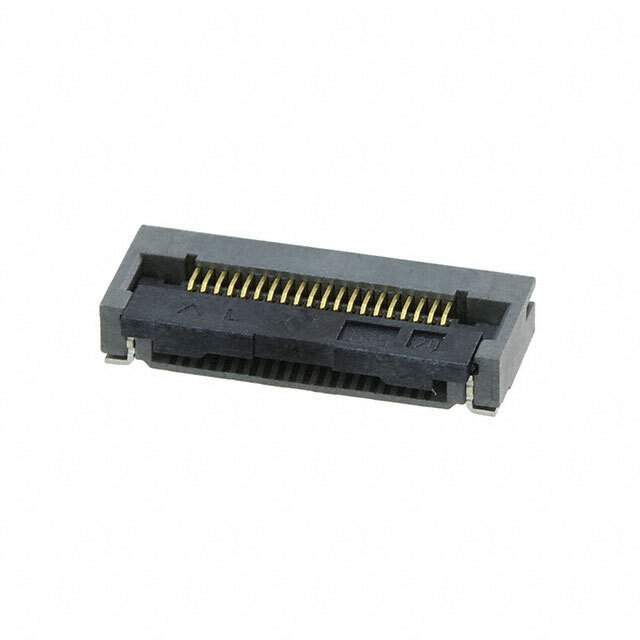

FH28D-20S-0.5SH(05)

Name: FH28D-20S-0.5SH(05)
Brand: Hirose Electric Co Ltd
SKU: 1166225
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH28D-20S-0.5SH(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 20POS 0.50MM R/A / 20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Hirose Electric Co Ltd
Series	FH28
Package	Tape & Reel
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	20
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.100" (2.54mm)
Locking Feature	Rotary Lock
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Gray
Actuator Color	Black
Mating Cycles	20
Base Product Number	FH28
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	FH28D-20S-0.5SH(05)-ND,H125753DKR,H125753TR,586-1823-5-05,H125753CT
Standard Package	2,000
Win Source Part Number	1166225-FH28D-20S-0.5SH(05)
Ultra Librarian 3D Model	Ultra Librarian FH28D-20S-0.5SH(05) CAD Model

Alternative Products

Description

The FH28D-20S-0.5SH(05) is a 20-position FFC, FPC (Flat Flexible) connector manufactured by Hirose Electric Co Ltd.

Pitch: 0.020" (0.50mm)
Solder Retention: Yes
Zero Insertion Force (ZIF): Yes
Termination: Solder
Contact Finish: Gold
Packaging: Tape and Reel
Voltage Rating: 50V
Height Above Board: 0.100" (2.54mm)
Flat Flex Type: FFC, FPC
Connector/Contact Type: Contacts, Bottom
FFC, FCB Thickness: 0.30mm
Locking Feature: Rotary Lock
Housing and Actuator Material: Liquid Crystal Polymer (LCP), Halogen-Free
Material Flammability Rating: UL94 V-0
Housing Color: Gray
Standard Package: 2,000
Current Rating: 0.5A
Operating Temperature Range: -40°C to 105°C
Actuator Color: Black
ECCN: EAR99
HTSUS Code: 8536.69.4051
