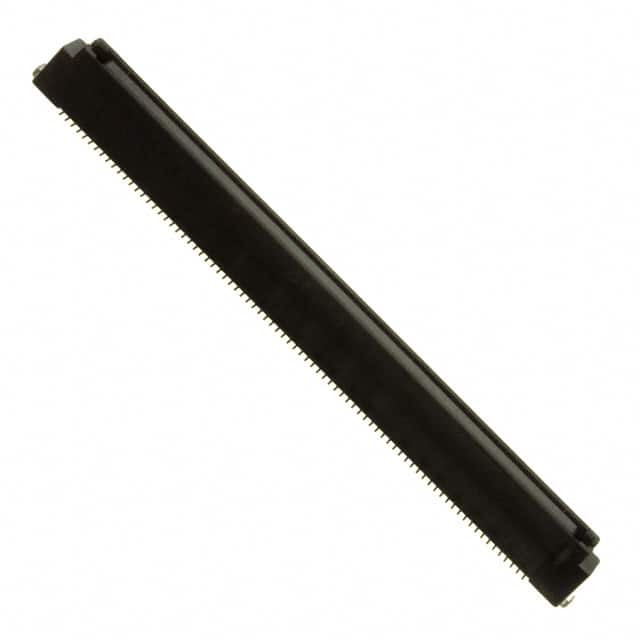

Part No KX14-160N5DE
Manufacturer JAE Electronics
Catalog Rectangular Connectors
Description CONN RCPT 160POS SMD GOLD
Datasheet
KX14-160N5DE Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr JAE Electronics
Series KX14
Package Tray
Product Status Obsolete
Connector Type Receptacle, Outer Shroud Contacts
Number of Positions 160
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 7mm, 8mm, 9mm
Height Above Board 0.258" (6.55mm)
Base Product Number KX14-160
Standard Package 45 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 922570-KX14-160N5DE
Ultra Librarian 3D Model Ultra Librarian KX14-160N5DE CAD Model

Description

The KX14-160N5DE is a rectangular connector array from JAE Electronics.

  • Product Name: KX14-160N5DE
  • Manufacturer: JAE Electronics
  • Series: KX14
  • Positions: 160
  • Pitch: 0.031" (0.80mm)
  • Application: Board-to-Board Mezzanine
  • Type: Receptacle
  • Contacts: Outer Shroud
  • Features: Board Guides, Solder Retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Mounting: Surface Mountable
  • Height Above Board: 0.258" (6.55mm)
  • Package: Tray
  • Standard Package Quantity: 45 pcs
  • REACH: Unaffected
  • ECCN: EAR99
