Same model may have multiple batches, images only for reference.

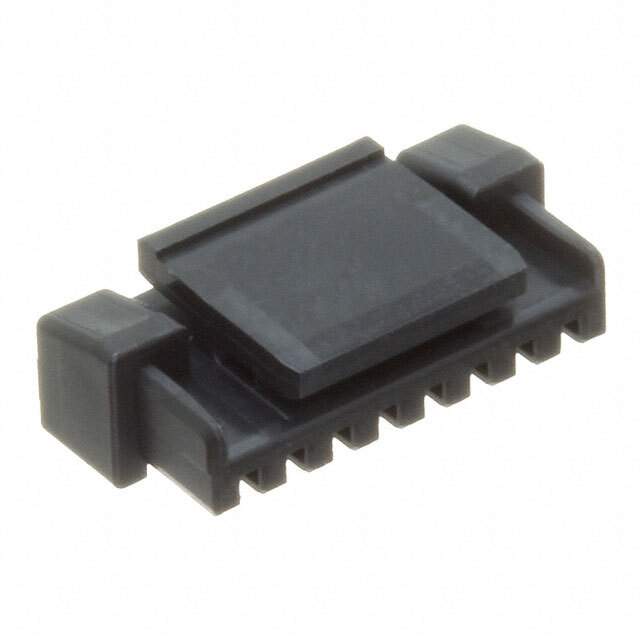

5055650801 Real Image
Same model may have multiple batches, images only for reference.

5055650801

Part No 5055650801
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT HSG 1.25MM BLK / Rectangular Connectors - Housings Receptacle Black 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Molex
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Pitch 0.049" (1.25mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Holder
Color Black
Note Contacts Not Included
Base Product Number 505565
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 505565-0801,WM17153
Standard Package 1,000
Win Source Part Number 1332597-5055650801
Ultra Librarian 3D Model Ultra Librarian 5055650801 CAD Model

Description

The Molex 5055650801 is a rectangular connector housing manufactured by Molex.

  • Color: black
  • Connector Type: receptacle
  • Pitch: 0.049 inches (1.25mm)
  • Fastening Type: latch holder
  • Contact Termination: crimp
  • Packaging: bulk
  • Standard Package: 1,000
  • Contacts Included: No
  • RoHS3 Compliant: Yes
