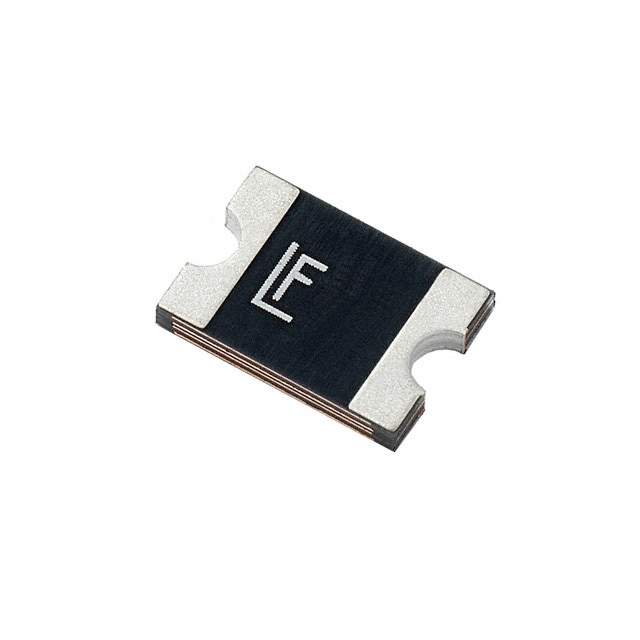

2920L330/24MR Real Image 2920L330/24MR label picture 2920L330/24MR label picture 2
Same model may have multiple batches, images only for reference.
2920L330/24MR Real Image 2920L330/24MR label picture 2920L330/24MR label picture 2
2920L330/24MR Real Image 2920L330/24MR label picture 2920L330/24MR label picture 2
Same model may have multiple batches, images only for reference.

2920L330/24MR

Part No 2920L330/24MR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 24V 3.3A 2920
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 24V
Current - Max 40A
Current - Hold (Ih) (Maximum) 3.3A
Current - Trip (It) 5.5A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 15 mOhms
Resistance - Post Trip (R1) (Maximum) 55 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 2920 (7351 Metric), Concave
Dimension 0.290" L x 0.202" W (7.36mm x 5.12mm)
Thickness (Maximum) 0.079" (2.00mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806881-2920L330/24MR
Ultra Librarian 3D Model Ultra Librarian 2920L330/24MR CAD Model

Description

The Littelfuse Inc. 806881-2920L330/24MR is a polymeric type surface mount fuse suitable for use in a variety of electronic applications.

  • Maximum Voltage: 24V
  • Maximum Current: 40A
  • Current Trip: 5.5A
  • Time to Trip: 5s
  • Operating Temperature: -40°C to 85°C
  • Resistance: 15 mOhms
  • Post Trip Resistance: 55 mOhms
  • Manufacturer Package: 2920 (7351 Metric), Concave
  • Thickness (maximum): 0.079" (2.00mm)
  • Current Hold (Ih) (maximum): 3.3A
  • Approvals: cURus, TUV
  • Supply and Demand Status: Balance
  • Manufacturer Pack Quantity: 1,000
  • MSL Level: 1 (Unlimited)
