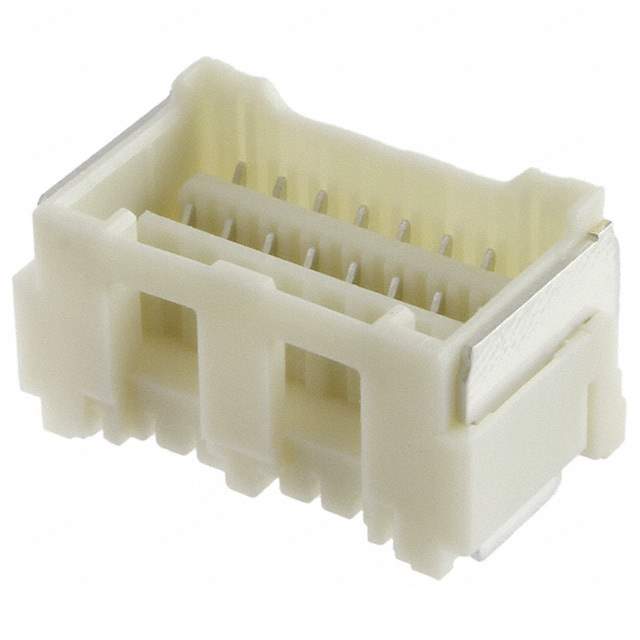

5031481690

Name: 5031481690
Brand: Molex, LLC
SKU: 848907
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5031481690
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 16P 0.059 TIN SMD R/A / 16 Position Receptacle Connector 0.059" (1.50mm) Surface Mount, Right Angle Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Molex, LLC
Series	CLIK-Mate 503148
Package	Tape & Reel
Product Status	Active
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Cable/Wire
Number of Positions	16
Number of Positions Loaded	All
Pitch - Mating	0.059" (1.50mm)
Number of Rows	2
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Insulation Color	Beige
Insulation Height	0.360" (9.14mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place, Solder Retention
Applications	Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material	Resin
Contact Material	Copper Alloy
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	503148
Standard Package	550 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	848907-5031481690
Ultra Librarian 3D Model	Ultra Librarian 5031481690 CAD Model

Description

The CLIK-Mate 503148 series is a rectangular connector receptacle designed for various applications including automotive, general purpose, industrial, lighting, and medical.

Positions: 16
Rows: 2
Features: Pick and Place, Solder Retention
Termination: Solder
Fastening Type: Latch Holder
Package: Tape & Reel
Pieces: 550
Contact Material: Copper Alloy
Contact Finish (Mating): Tin
Insulation Material: Resin
Insulation Color: Beige
Mounting Type: Surface Mount, Right Angle
Operating Temperature: -40°C to 105°C
