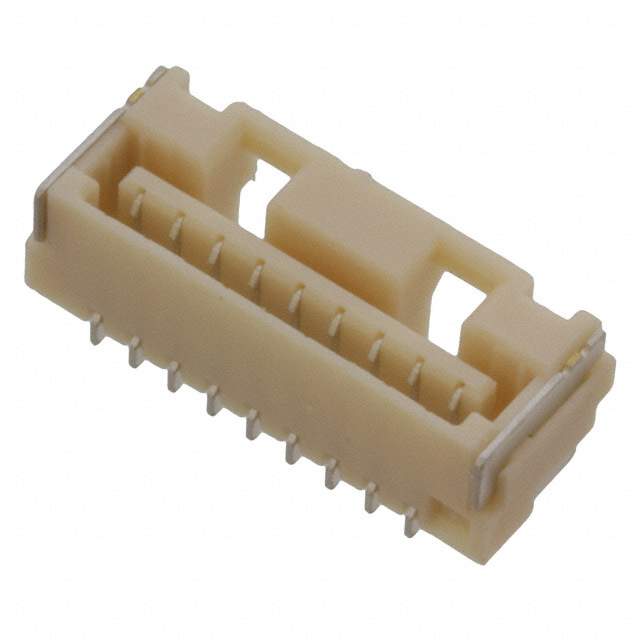

5023860970 Real Image1 5023860970 Real Image2
Same model may have multiple batches, images only for reference.
5023860970 Real Image1 5023860970 Real Image2
5023860970 Real Image1 5023860970 Real Image2
Same model may have multiple batches, images only for reference.

5023860970

Part No 5023860970
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 9POS 0.049 TIN SMD R/A / 9 Position Receptacle Connector 0.049" (1.25mm) Surface Mount, Right Angle Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr Molex, LLC
Series CLIK-Mate 502386
Package Tape & Reel
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Number of Positions 9
Number of Positions Loaded All
Pitch - Mating 0.049" (1.25mm)
Number of Rows 1
Row Spacing - Mating -
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Insulation Color Natural
Insulation Height 0.215" (5.45mm)
Contact Length - Post -
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights -
Ingress Protection -
Features Solder Retention
Current Rating (Amps) 1A
Voltage Rating 50V
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Resin
Contact Shape -
Contact Material Copper Alloy
Contact Finish Thickness - Post 39.4µin (1.00µm)
Base Product Number 502386
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,200 pcs
Win Source Part Number 1380859-5023860970
Ultra Librarian 3D Model Ultra Librarian 5023860970 CAD Model

Description

The 1380859-5023860970 is a 9-position receptacle connector with female sockets. It features solder retention and is suitable for automotive, general-purpose, industrial, lighting, and medical applications. Molex, LLC manufactures it.

  • Connector Type: Receptacle
  • Contact Gender: Female Socket
  • Features: Solder Retention
  • Application: Automotive, General Purpose, Industrial, Lighting, Medical
  • Contact Material: Copper Alloy
  • Contact Finish: Tin
  • Voltage Rating: 50V
  • Flammability Rating: UL94 V-0
  • Package: Tape & Reel (TR)
  • Mounting Type: Surface Mount, Right Angle
  • Operating Temperature: -40°C ~ 105°C
  • ECCN: EAR99
  • REACH: Unaffected
