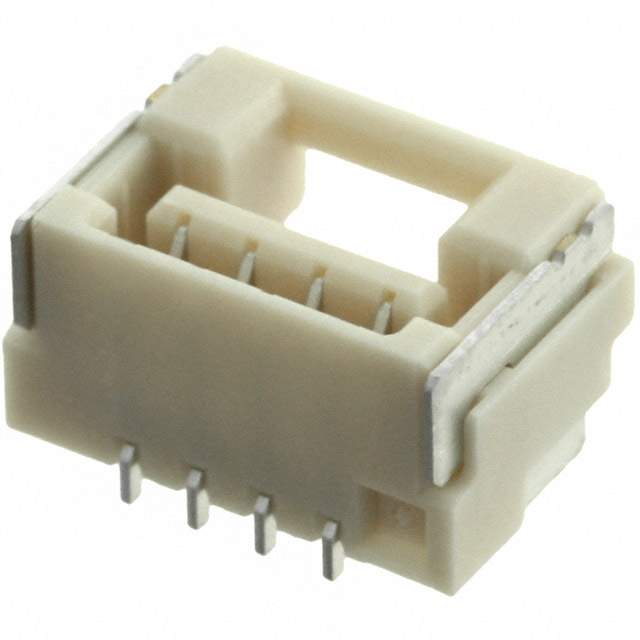

5023860470

Part No 5023860470
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 4POS 1.25MM R/A SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Cable/Wire
Number of Positions 4
Number of Positions Loaded All
Pitch - Mating 0.049" (1.25mm)
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 39μin (1.00μm)
Insulation Color Natural
Insulation Height 0.215" (5.45mm)
Temperature Range - Operating -40°C to 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Solder Retention
Current Rating 1A
Voltage Rating 50V
Applications Automotive, General Purpose, Industrial, Lighting, Medical
Insulation Material Resin
Contact Finish Thickness - Post 39μin (1.00μm)
Win Source Part Number 138647-5023860470
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5023860470 CAD Model

Description

Product Description

The 5023860470 is a cutting-edge electronic component that provides reliability and efficiency in various demanding applications. Its design supports a broad spectrum of technological innovations, allowing for seamless incorporation into diverse electronic architectures.

Features and Benefits

  • High reliability for mission-critical applications.
  • Efficient energy usage for eco-friendly designs.
  • Compact and lightweight for modern device needs.
  • Wide compatibility with existing technologies.

Applications

  • Renewable energy systems
  • Consumer electronics innovation
  • Digital data processing
  • Instrumentation and control

The unmatched capabilities of the 5023860470 make it an essential component for forward-thinking technical advancements.
