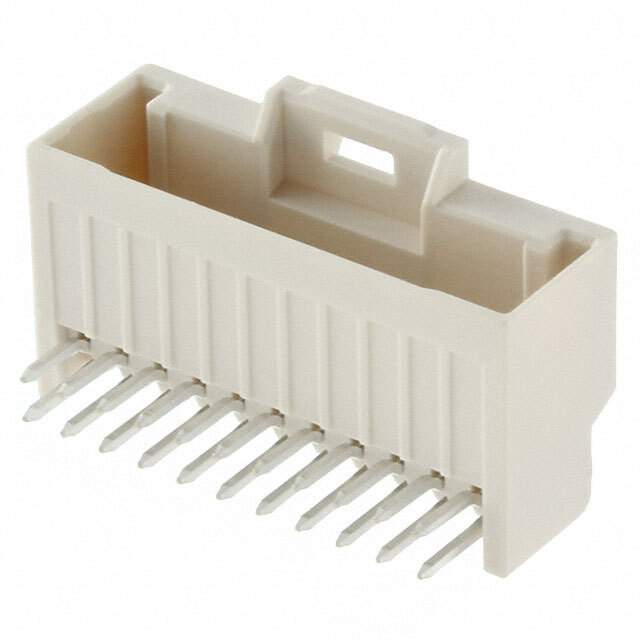

5018762240

Name: 5018762240
Brand: Molex, LLC
SKU: 1332878
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5018762240
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 22POS 2MM / Connector Header Through Hole, Right Angle 22 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	22
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.327" (8.30mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number	501876
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	5018762240-ND,WM12316,501876-2240
Standard Package	350
Win Source Part Number	1332878-5018762240
Ultra Librarian 3D Model	Ultra Librarian 5018762240 CAD Model

Description

The 5018762240 is a high-quality header connector manufactured by Molex.

Style: Board to Cable/Wire
Pitch: 0.079 inches
Positions: 22
Mounting Type: Through-Hole, Right-Angle
Contact Finish: Tin
Shrouding: Shrouded with 4 Walls
Contact Length: 0.126 inches
Insulation Height: 0.327 inches
