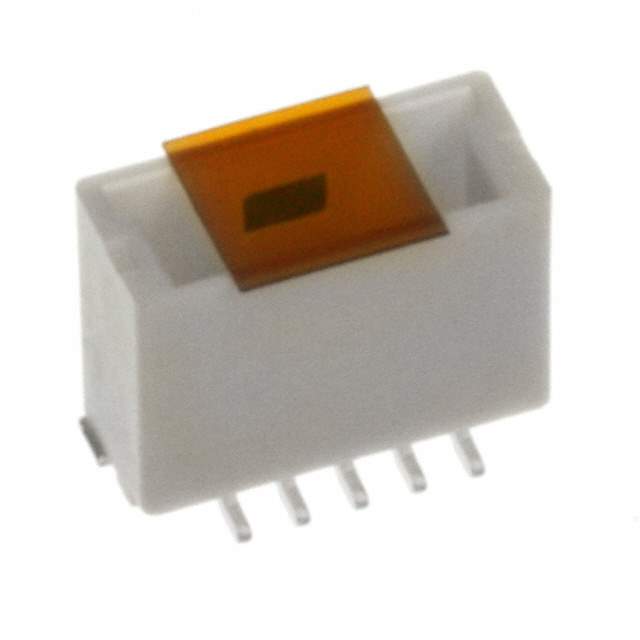

5013310507

Name: 5013310507
Brand: Molex, LLC
SKU: 1380847
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5013310507
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 5POS 1MM / Connector Header Surface Mount 5 position 0.039" (1.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Molex, LLC
Series	Pico-Clasp 501331
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.039" (1.00mm)
Number of Positions	5
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	-
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.213" (5.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	40.0µin (1.02µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyamide (PA46), Nylon 4/6
Features	Pick and Place, Solder Retention
Temperature Range - Operating	-
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	General Purpose
Base Product Number	501331
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,100 pcs
Win Source Part Number	1380847-5013310507
Ultra Librarian 3D Model	Ultra Librarian 5013310507 CAD Model

Description

The Pico-Clasp 501331 series is a versatile and reliable header connector designed for general-purpose applications. Molex manufactures it.

Number of Positions: 5
Number of Rows: 1
Features: Pick and Place, Solder Retention
Termination: Solder
Fastening Type: Latch Holder
Contact Material: Phosphor Bronze
Flammability Rating: UL94 V-0
Application: General Purpose
Mounting Type: Surface Mount
