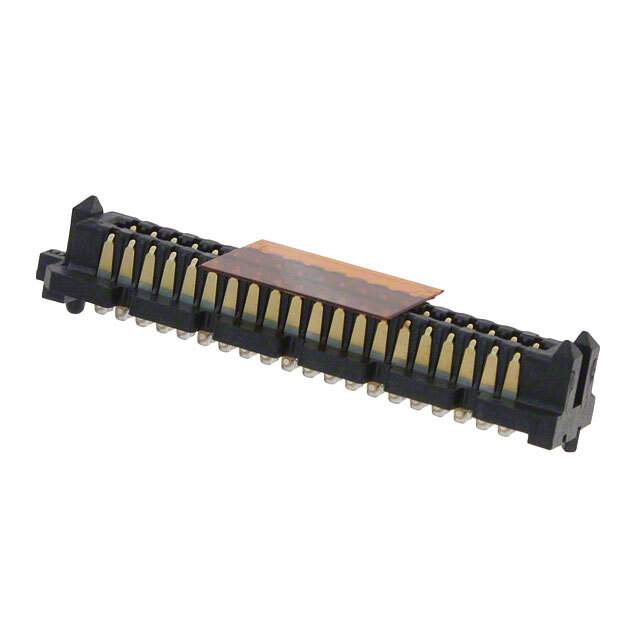

0465562145

Get a Quote

Part No	0465562145
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HD ARRAY PLUG 80P SMD GOLD / 80 Position Connector High Density Array, Male Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer	Molex
Packaging	Reel - TR
Connector Type	High Density Array, Male
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 9.5mm, 10mm
Height Above Board	0.221" (5.61mm)
Base Product Number	046556
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	WM4970DKR-ND,0465562145-C,46556-2145,465562145-C,23-0465562145TR,465562145,23-0465562145DKR,046556-2145-C,46556-2145-C,23-0465562145CT,WM4970TR,WM4970TR-ND,WM4970CT-ND,046556-2145,WM4970DKR,46556-2145-ND,WM4970CT
Standard Package	300
Win Source Part Number	1332685-0465562145
Ultra Librarian 3D Model	Ultra Librarian 0465562145 CAD Model

Description

The 1332685-0465562145 electronic component is a high-density array male connector manufactured by Molex.

Connector Type: Edge Type, Mezzanine (Board to Board)
Positions: 80
Pitch - Mating: 0.050 inches
Features: Board Guide
Number of Rows: 4
Contact Finish - Mating: Gold, 30.0 micrometers
Mated Stacking Heights: 7mm, 8mm, 8.5mm, 9.5mm, and 10mm
Height Above Board: 0.221 inches
Packaging: Reel-TR
Mounting Type: Surface Mount
MSL: 1 (Unlimited)
REACH Status: Unaffected
HTSUS: 8536.69.4040
ROHS3 Compliant: Yes
Other Part Numbers: WM4970DKR-ND, 0465562145-C, 46556-2145, 465562145-C, 23-0465562145TR, 465562145, 23-0465562145DKR, 046556-2145-C, 46556-2145-C, 23-0465562145CT, WM4970TR, WM4970TR-ND, WM4970CT-ND, 046556-2145, WM4970DKR, and 46556-2145-ND
