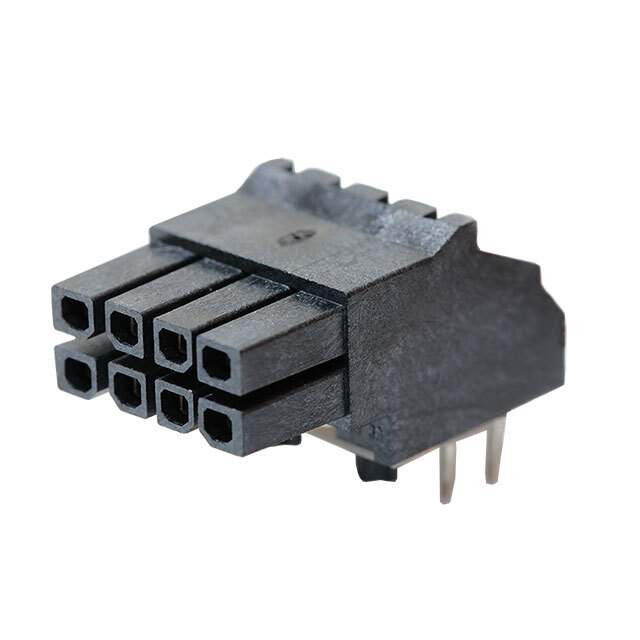

44764-0801 Real Image
Same model may have multiple batches, images only for reference.

44764-0801

Part No 44764-0801
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 8POS 3MM R/A TIN
Datasheet
44764-0801 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Series Micro-Fit 3.0 BMI 44764
Packaging Tray
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.118" (3.00mm)
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 40μin (1.02μm)
Insulation Color Black
Insulation Height 0.402" (10.20mm)
Contact Length - Post 0.155" (3.94mm)
Operating Temperature Range -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Guide
Current Rating 5A
Voltage Rating 600VAC
Applications General Purpose, Telecommunications
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 40μin (1.02μm)
Win Source Part Number 763657-44764-0801
Popularity Medium
Supply and Demand Status Limited
Introduction Date July 08, 2010
ECCN EAR99
Country of Origin China, United States of America, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 44764-0801 CAD Model

Description

The Molex Connector Corporation electronic component with Win Source Part Number 763657-44764-0801 is a part of the Micro-Fit 3.0 BMI 44764 series.

  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Contact Material: Phosphor Bronze
  • Voltage Rating: 600VAC
  • Current Rating: 5A
  • Applications: General Purpose, Telecommunications
  • Mounting Style: Through Hole, Right Angle
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass-Filled
  • Flammability Rating: UL94 V-0
  • Halogen Free: Yes
