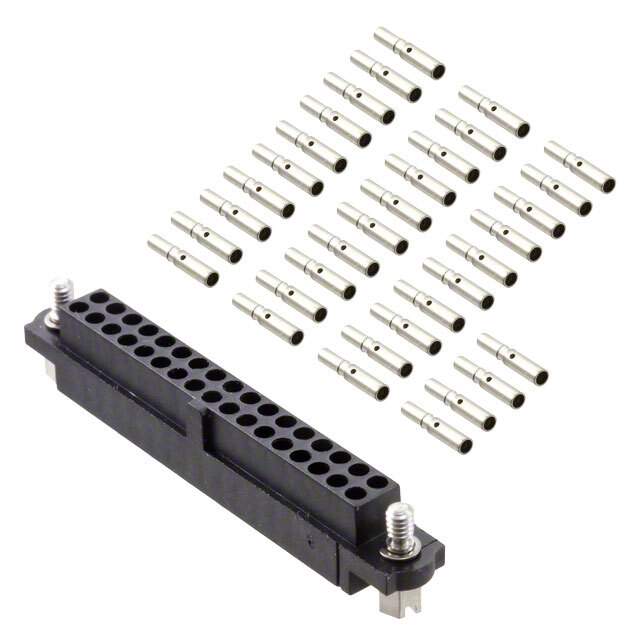

M80-4603442 Real Image
Same model may have multiple batches, images only for reference.

M80-4603442

Part No M80-4603442
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 34POS CRIMP 22AWG GOLD
Datasheet
M80-4603442 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 11 Weeks
Features 34 Position Rectangular Receptacle Connector Crimp Gold 22 AWG
Manufacturer Harwin Inc.
Series Datamate J-Tek
Package Bulk
Mounting Free Hanging (In-Line)
Family Name M80-460
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number M80-4D13442F1, 952-2050, M804603442, M80-4D13442F1-ND
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924978-M80-4603442
Ultra Librarian 3D Model Ultra Librarian M80-4603442 CAD Model

Description

Harwin Inc. manufactures the Datamate J-Tek series 34 position rectangular receptacle connector crimp gold 22 AWG electronic component.

  • Series: Datamate J-Tek series
  • Positions: 34
  • Type: Rectangular receptacle connector
  • Termination: Crimp gold 22 AWG
  • Win Source Part Number: 924978-M80-4603442
  • Supply and Demand Status: Balanced
  • Category: Connectors
  • Family Name: M80-460
  • Estimated Production Lead Time: 11 weeks
