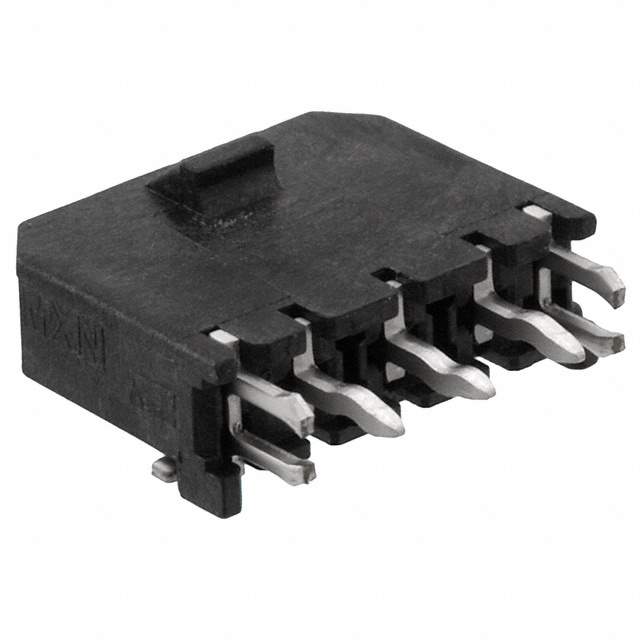

0436500320 Real Image
Same model may have multiple batches, images only for reference.

0436500320

Part No 0436500320
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 3MM / Connector Header Through Hole 3 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043650
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 43650-0320,043650-0320,436500320,WM7499
Standard Package 2,550
Win Source Part Number 1333056-0436500320
Ultra Librarian 3D Model Ultra Librarian 0436500320 CAD Model

Description

The Molex 1333056-0436500320 is a 3-position male pin header connector that is ideal for use in general purpose, medical, military, and telecommunications applications.

  • Board Lock: Yes
  • Contact Material: Brass
  • Contact Finish: Gold
  • Locking Ramp: Yes
  • Shrouded: 4-Wall
  • Voltage Rating: -
  • Insulation Material: Liquid Crystal Polymer (LCP) and Glass-Filled
  • Material Flammability Rating: UL94 V-0
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mounting Type: Through Hole
  • Pitch-Mating: 0.118" (3.00mm)
