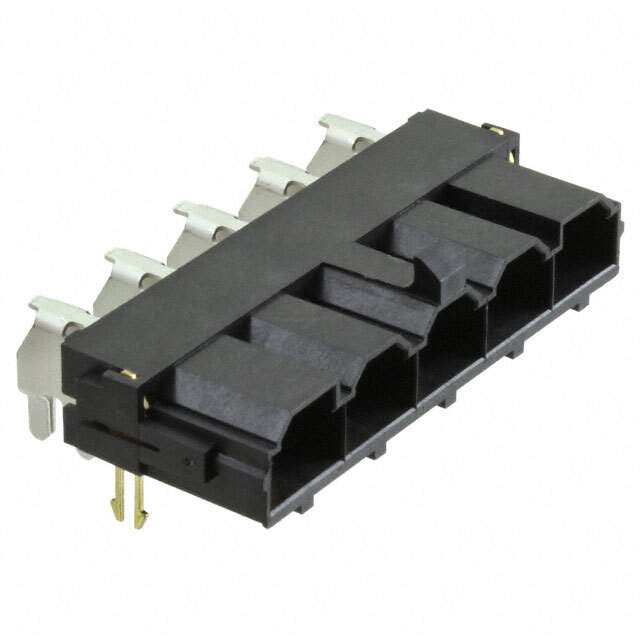

0428205213 Real Image
Same model may have multiple batches, images only for reference.

0428205213

Part No 0428205213
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 5POS 10MM / Connector Header Through Hole, Right Angle 5 position 0.394" (10.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Mini-Fit Sr 42820
Package Tube
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.394" (10.00mm)
Number of Positions 5
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.421" (10.70mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Zirconium Alloy
Insulation Material Polyamide (PA46) , Nylon 4/6, Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 042820
Standard Package 9
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338813-0428205213
Ultra Librarian 3D Model Ultra Librarian 0428205213 CAD Model

Description

The Mini-Fit Sr 42820 header connector is a male pin connector that is perfect for use in the automotive, general purpose, industrial, medical, and telecommunications industries.

  • Series: Mini-Fit Sr
  • Connector Type: Header Connector
  • Contact Gender: Male Pin
  • Application: Automotive, General Purpose, Industrial, Medical, Telecommunications
  • Board Lock: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Standard Package Quantity: 9
  • Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
  • Pitch-Mating: 0.394" (10.00mm)
  • Contact Length-Post: 0.138" (3.50mm)
  • RoHS: Non-Compliant
  • ECCN: EAR99
  • MSL: 1 (Unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Manufacturer: Molex
  • Base Product Number: 042820
