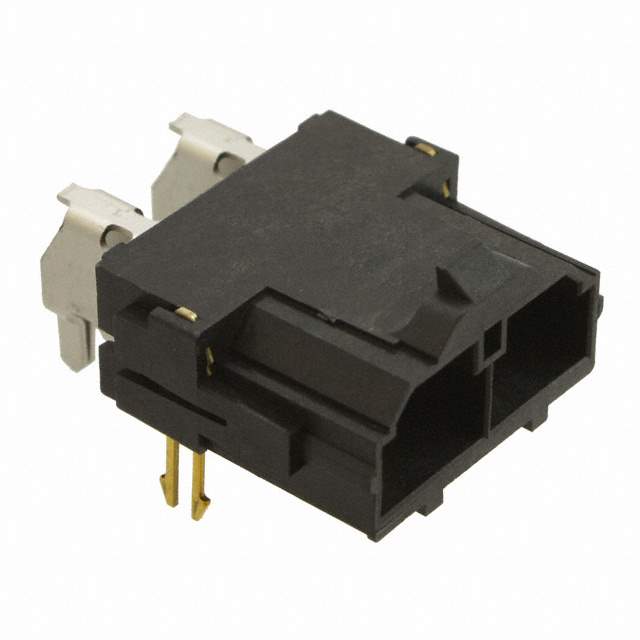

Part No 0428202213
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 2POS 10MM / Connector Header Through Hole, Right Angle 2 position 0.394" (10.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tube
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.394" (10.00mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.421" (10.70mm)
Contact Shape Rectangular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Copper Zirconium Alloy
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 042820
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 42820-2213-ND,WM6461,428202213,Q1252161,42820-2213
Standard Package 21
Win Source Part Number 1332728-0428202213
Ultra Librarian 3D Model Ultra Librarian 0428202213 CAD Model

Description

This Molex header male pin connector has 2 positions and is designed for through hole, right angle mounting.

  • Number of Positions: 2
  • Mounting: Through Hole, Right Angle
  • Fastening Type: Locking Ramp
  • Shrouding: 4 Walls
  • Contact Type: Male Blade
  • Contact Material: Copper Zirconium Alloy
  • Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
  • Insulation Color: Black
  • Pitch: 0.394 inches (10.00 mm)
  • Contact Finish-Mating: Gold, 30.0µin (0.76µm)
  • Contact Finish-Post: Tin, 100.0µin (2.54µm)
  • Series: 42820
  • Base Product Number: 042820
  • ROHS3 Compliant: Yes
  • ECCN: EAR99
