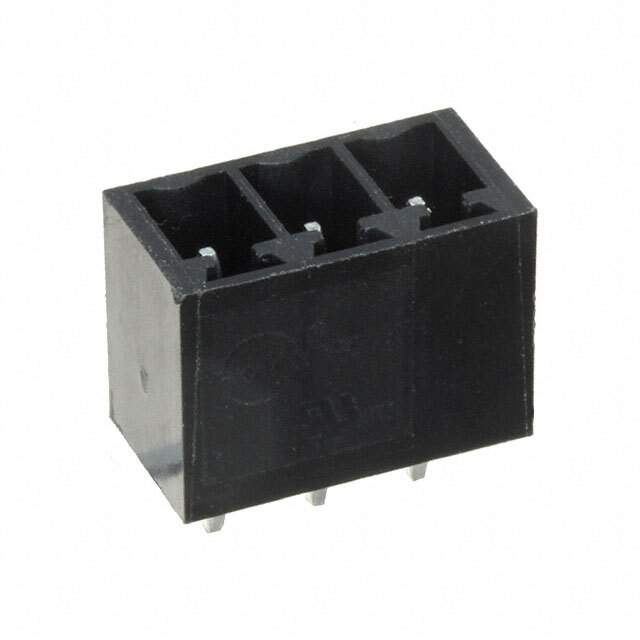

395111003 Real Image
Same model may have multiple batches, images only for reference.

395111003

Part No 395111003
Manufacturer Molex, LLC
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 3POS VERT 3.81MM
Datasheet
395111003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Eurostyle ESE 39511
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.150" (3.81mm)
Header Orientation Vertical
Termination Style Solder
Mounting Style Through Hole
Current - UL 8A
Voltage - UL 300V
Color Black
Operating Temperature Range -40°C ~ 105°C
Contact Mating Finish Tin
Material Flammability Rating UL94 V-0
Contact Material Brass
Housing Material Polyamide (PA66), Nylon 6/6
Insulation Height 0.360" (9.14mm)
Win Source Part Number 763440-395111003
Popularity Medium
Supply and Demand Status Limited
Family Name 39511
Introduction Date April 22, 2010
ECCN EAR99
Country of Origin China, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 395111003 CAD Model

Description

The Molex Eurostyle ESE 39511 is a 3-position header connector with male pins and shrouded sides.

  • Pitch: 0.150" (3.81mm)
  • Current Rating: 8A
  • Voltage Rating: 300V
  • Housing Material: Polyamide (PA66), nylon 6/6
  • Contact Material: Brass
  • Contact Mating Finish: Tin
  • Applications: Consumer electronics, automotive, and general purpose equipment
