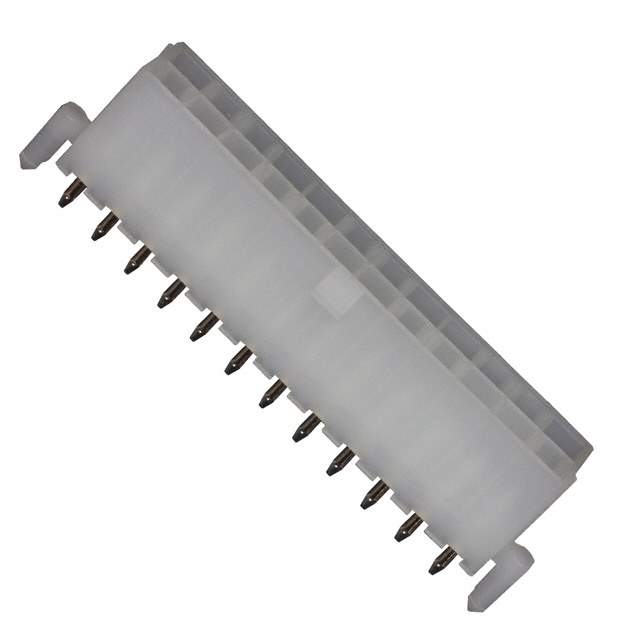

Part No 0039299243
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 24POS 4.2MM / Connector Header Through Hole 24 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 35.0µin (0.90µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003929
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 039299243,5566-24A2,WM3863-ND,03929-9243,WM3863,003929-9243,39-29-9243,23-0039299243,39299243,3929-9243
Standard Package 1
Win Source Part Number 1332932-0039299243
Ultra Librarian 3D Model Ultra Librarian 0039299243 CAD Model

Description

The Molex product with Win Source Part Number 1332932-0039299243 is a 24-position through-hole header connector with male pins.

  • Package: Tray
  • Board Lock: Yes
  • Shrouding: 4 Walls
  • Insulation Color: Natural
  • Pitch-Mating: 0.165" (4.20mm)
  • Contact Finish-Mating: Tin
  • Supply and Demand Status: Balance
