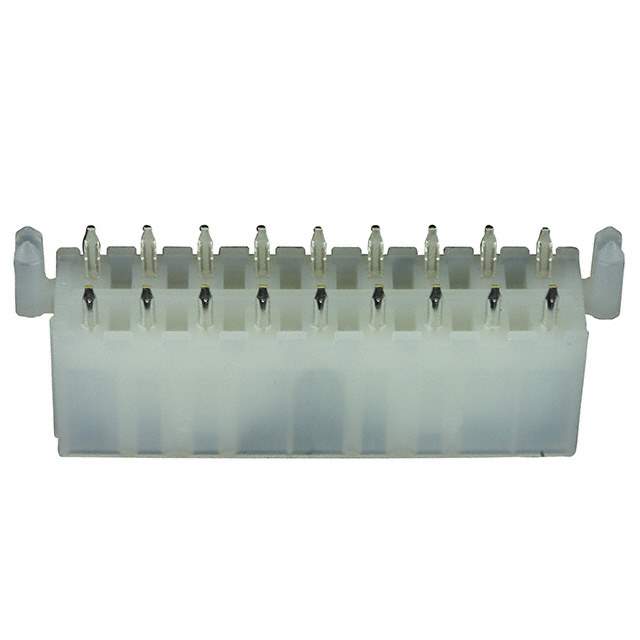

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 18
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 35.0µin (0.90µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003929
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 39-29-9183,WM3861-ND,5566-18A2,23-0039299183,WM3861,39299183
Standard Package 1
Win Source Part Number 1332876-0039299183
Ultra Librarian 3D Model Ultra Librarian 0039299183 CAD Model

Description

The Molex 1332876-0039299183 is a rectangular connector header with male pins.

  • Positions: 18
  • Pitch: 0.165 inches
  • Rows: Two
  • Feature: Board Lock
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Contact Finish: Tin
  • Thickness (Mating): 35.4μin
  • Thickness (Post): 35.0μin
  • Shrouding: Shrouded-4 Wall
  • Mounting Style: Through-Hole
  • Applications: General Purpose, Industrial, Telecommunications
