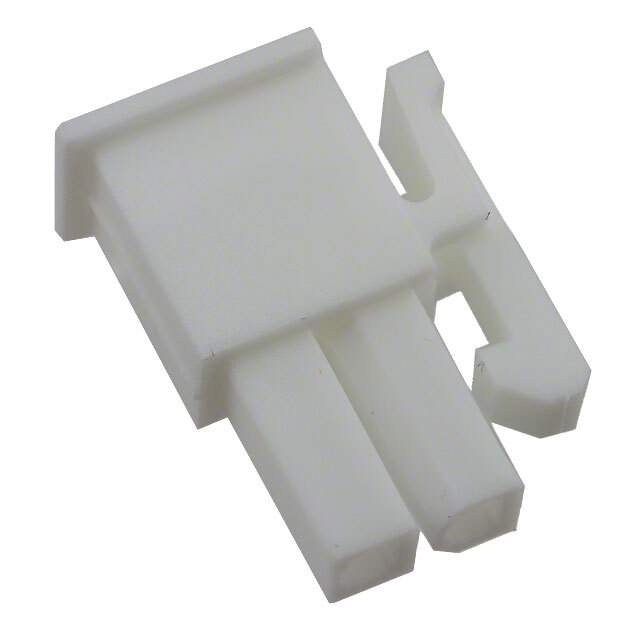

Same model may have multiple batches, images only for reference.

0039013028

Name: 0039013028
Brand: Molex, LLC
SKU: 1337146
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0039013028
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 2POS MINIFIT / 2 Rectangular Connectors - Housings Receptacle Natural
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr	Molex
Series	Mini-Fit Jr 5557
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	2
Number of Rows	2
Row Spacing	0.165" (4.20mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	Latch Lock
Color	Natural
Temperature Range - Operating	-40°C ~ 105°C
Note	Contacts Not Included
Base Product Number	003901
Standard Package	9,500
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	1337146-0039013028
Ultra Librarian 3D Model	Ultra Librarian 0039013028 CAD Model

Alternative Products

Description

The Mini-Fit Jr 5557 series by Molex is a range of rectangular connector housings designed for use in a variety of applications.

Number of Positions: 2
Row Spacing: 0.165 inches (4.20mm)
Contact Gender: Female Socket
Fastening Type: Latch Lock
Material Color: Natural
Packaging: Bulk
Mounting Type: Free Hanging (In-Line)
