Same model may have multiple batches, images only for reference.

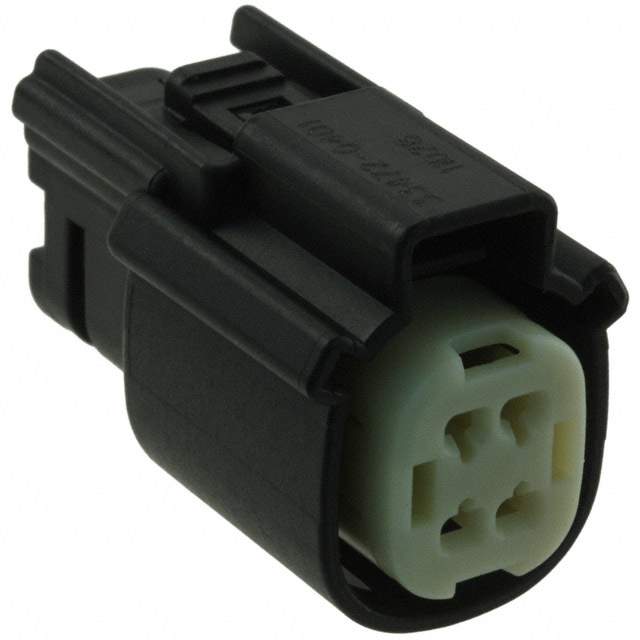

334720401 Real Image
Same model may have multiple batches, images only for reference.

334720401

Part No 334720401
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description MX150 Sealed Female Connector, Dual Row, 4 Circuits, Polarization A, without Connector Position Assurance, Black
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Categories Custom Parts
Win Source Part Number 1175271-334720401
Voltage Rating (DC) 250 V
Termination Crimp
RoHS Compliant
Radiation Hardening No
Pitch 3.5 mm
Orientation Straight
Number of Rows 2
Number of Positions 4
Number of Contacts 4
Mount Free Hanging
Min Operating Temperature -40 °C
Max Operating Temperature 125 °C
Lead Free Lead Free
Housing Material Polystyrene
Housing Color Black
Gender Receptacle
Fastening Type Latch
Depth 20.5 mm
Current Rating 22 A
Country of Origin US
Connector Type Receptacle, Socket
Color Black
Ultra Librarian 3D Model Ultra Librarian 334720401 CAD Model

Description

The Molex 1175271-334720401 is a 4-position, 2-row, straight receptacle socket connector with a pitch of 3.5 mm.

  • Contact Material: Polystyrene
  • Current Rating: 22 A
  • Voltage Rating: 250 V
  • RoHS Compliant: Yes
  • Operating Temperature: -40°C to 125°C
