Same model may have multiple batches, images only for reference.

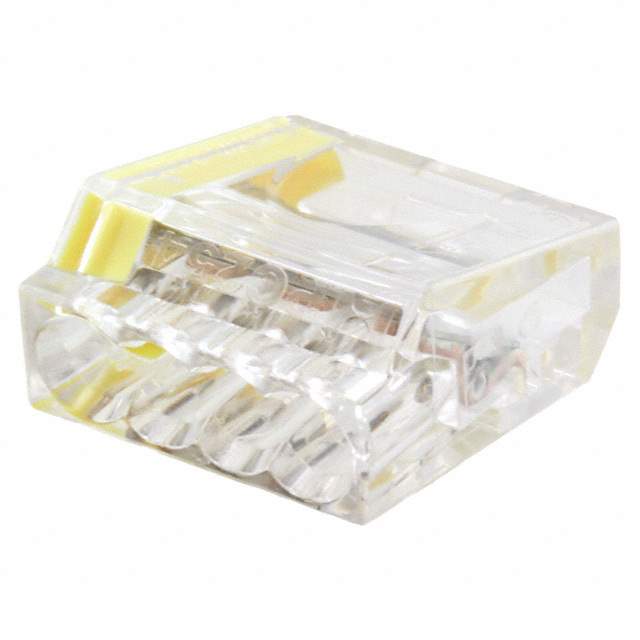

19430-0003 Real Image
Same model may have multiple batches, images only for reference.

19430-0003

Part No 19430-0003
Manufacturer Molex, LLC
Catalog Terminals
Description Junction Box Splice Terminal 12-22AWG Yellow 17.2mm See and Splice™ Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Yellow
Country of Origin US
Gender Female
Height 9.4 mm
Insulation Fully Insulated
Insulation Material Thermoplastic
Lead Free Yes
Length 19.7 mm
Material Thermoplastic
Maximum Operating Temperature 105 °C
Min Operating Temperature -30 °C
Number of Wire Entries 4
Orientation Straight
Packaging Bulk
RoHS Compliant
Voltage Rating 600 V
Width 17.3 mm
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 12 AWG
Win Source Part Number 973915-19430-0003
Categories Terminals
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 19430-0003 CAD Model

Description

The Molex, LLC female terminal is a fully insulated, yellow-colored terminal that has a voltage rating of 600V.

  • Wire Entries: Four
  • Length: 19.7mm
  • Width: 17.3mm
  • Height: 9.4mm
  • Material: Thermoplastic
  • Wire Gauge Range: 12-22 AWG
  • Suitable for: Terminals
  • RoHS Compliant: Yes
