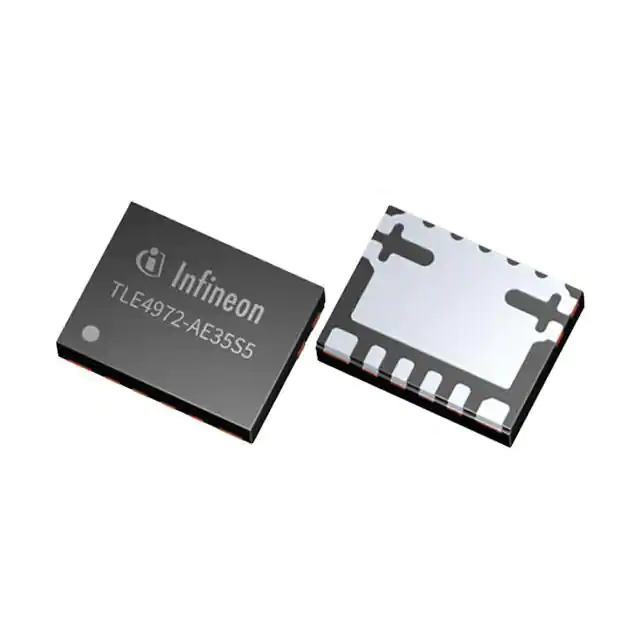

TLE4972AE35S5XUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

TLE4972AE35S5XUMA1

Part No TLE4972AE35S5XUMA1
Manufacturer Infineon Technologies
Catalog Current Transducers
Description SENSOR CUR HALL 2000A 6PWRVDFN
Datasheet
TLE4972AE35S5XUMA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Current Sensors
Mfr Infineon Technologies
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Differential
Current - Sensing 2000A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 62mV/mT
Frequency 210kHz
Linearity -
Accuracy -
Voltage - Supply 3.1V ~ 3.5V
Response Time 700ns
Current - Supply (Max) 25mA
Temperature Range - Operating -40°C ~ 125°C (TA)
Polarization -
Mounting Type Surface Mount
Package / Case 6-PowerVDFN
Supplier Device Package PG-VSON-6-4
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1375809-TLE4972AE35S5XUMA1
Ultra Librarian 3D Model Ultra Librarian TLE4972AE35S5XUMA1 CAD Model

Description

The 1375809-TLE4972AE35S5XUMA1 is a current sensor designed by Infineon Technologies.

  • Series: Automotive
  • Operating Temperature: -40°C to 125°C
  • Package: 6-PowerVDFN
  • Voltage Supply: 3.1V to 3.5V
  • Sensitivity: 62mV/mT
  • Response Time: 700ns
  • Output Type: Ratiometric and Voltage Output
  • Current Range: AC/DC currents up to 2000A
  • Applications: Automotive and Industrial Applications
