Get a Quote

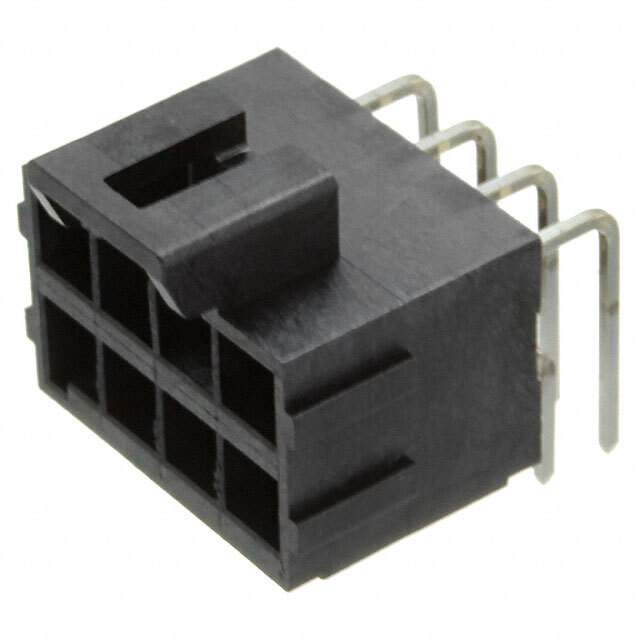

Part No	1723161308
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 8POS 3.5MM / Connector Header Through Hole, Right Angle 8 position 0.138" (3.50mm)
Datasheet	1723161308 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	Ultra-Fit 172316
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.138" (3.50mm)
Number of Positions	8
Number of Rows	2
Row Spacing - Mating	0.181" (4.60mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.534" (13.56mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide
Temperature Range - Operating	-40°C ~ 120°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	600VAC/DC
Contact Finish Thickness - Post	60.0µin (1.52µm)
Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number	172316
Standard Package	800
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350934-1723161308
Ultra Librarian 3D Model	Ultra Librarian 1723161308 CAD Model

Description

The Ultra-Fit 172316 male pin header connector is a high-performance rectangular connector that is ideal for use in a wide range of applications, including automotive, industrial, telecommunications, lighting, medical, and military. Ultra-Fit 172316 male pin header connector, Molex.

Voltage Rating: 600VAC/DC
Features: Board Guide and Latch Holder
Positions Loaded: All 8
Contact Material: Copper Alloy
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Pitch: 0.138" (3.50mm)
Row Spacing: 0.181" (4.60mm)
