Same model may have multiple batches, images only for reference.

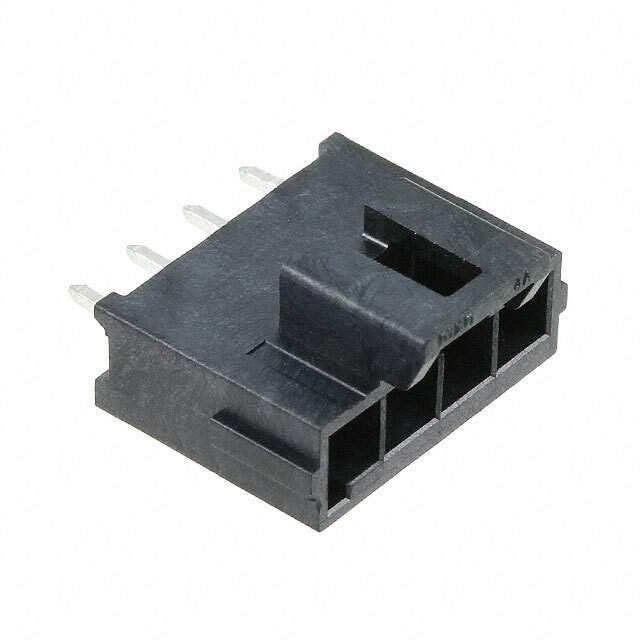

1722861104 Real Image
Same model may have multiple batches, images only for reference.

1722861104

Part No 1722861104
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 3.5MM
Datasheet
1722861104 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Ultra-Fit 172286
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.138" (3.50mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Kinked Pin, Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 600V
Mated Stacking Heights 26.99mm
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number 172286
Standard Package 1,400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849301-1722861104
Ultra Librarian 3D Model Ultra Librarian 1722861104 CAD Model

Description

The 790356 is a male pin header connector from Molex, LLC.

  • Series: Ultra-Fit 172286
  • Category: Connectors, Interconnects - Rectangular Connectors - Headers
  • Positions: 4
  • Board Guide: Yes
  • Type: Header Connector
  • Pins: Male
  • Pin Type: Kinked
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Package: Tray
  • Contact Material: Copper Alloy
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Applications: Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
  • Voltage Rating: 600V
  • Mated Stacking Height: 26.99mm
  • Flammability Rating: UL94 V-0
  • Standard Package: 1,400 pieces
  • Pitch: 0.138" (3.50mm)
  • Contact Finish: Tin
  • Contact Finish Thickness: 60.0μin (1.52μm)
  • Insulation Color: Black
  • Mounting: Through-Hole
  • Shrouding: Shrouded - 4 Wall
  • Contact Shape: Square
  • Temperature Range: -40°C to 105°C
  • MSL: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8536.69.4040
  • Product Status: Active
