Same model may have multiple batches, images only for reference.

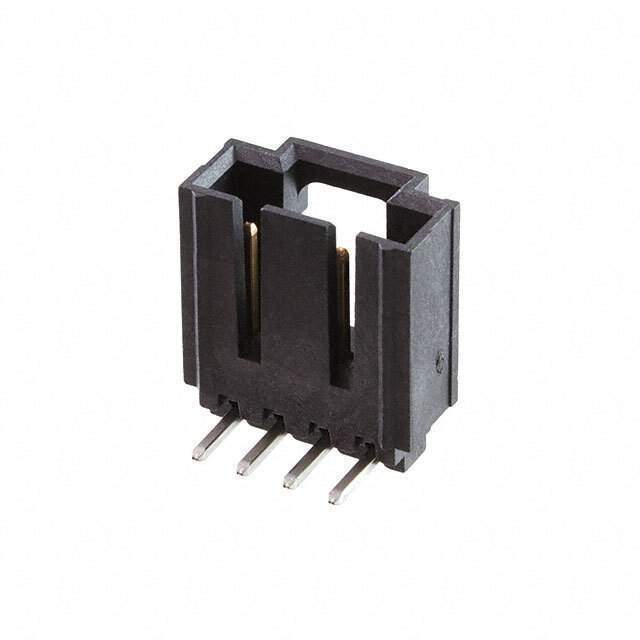

1719740104 Real Image
Same model may have multiple batches, images only for reference.

1719740104

Part No 1719740104
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 2.54MM / Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series SL 171974
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.276" (7.00mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP)
Features Polarizing Key
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 250V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications General Purpose
Base Product Number 171974
Standard Package 42
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348975-1719740104
Ultra Librarian 3D Model Ultra Librarian 1719740104 CAD Model

Description

The Molex SL 171974 series is a 4-position rectangular connector header with male pins.

  • Positions: 4
  • Polarizing Key: Yes
  • Application: Board-to-Cable/Wire
  • Pitch: 0.100 inches (2.54mm)
  • Contact Material: Brass
  • Contact Finish (Mating): Gold, 15.0μin (0.38μm)
  • Contact Finish (Post): Tin, 78.7μin (2.00μm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Height: 0.276 inches (7.00mm)
  • Voltage: 250V
  • Current: 3A
  • Temperature Range: -40°C to 105°C
  • Application: General Purpose
  • Mounting Type: Through Hole
  • Fastening Type: Right Angle
  • Packaging: Tube
  • Shrouding: Shrouded-4 Wall
