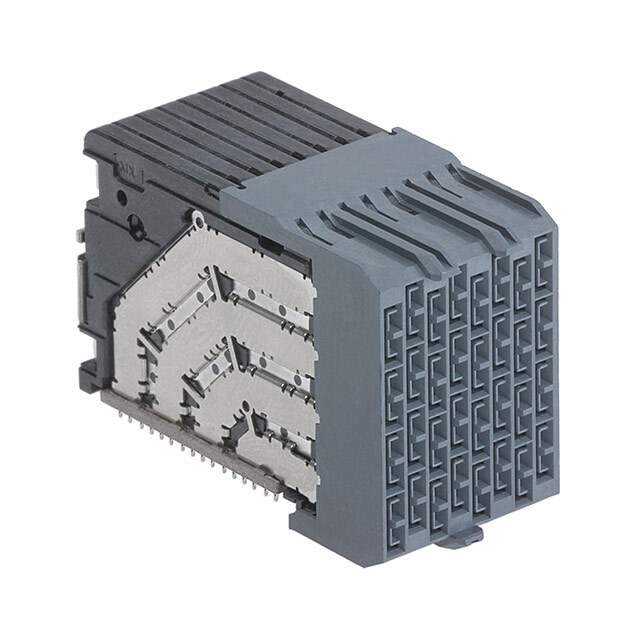

1713201022 Real Image
Same model may have multiple batches, images only for reference.

1713201022

Part No 1713201022
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description CONN RCPT IMPEL 96POS PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Molex, LLC
Series Impel 171320
Package Tray
Product Status Active
Connector Usage Coplanar, Daughtercard
Connector Type Receptacle, Female Sockets
Connector Style Impel™
Number of Positions 96
Number of Positions Loaded All
Number of Rows 8
Number of Columns 12
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 48 Differential Pairs
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 150V
Base Product Number 171320
Standard Package 99 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854118-1713201022
Ultra Librarian 3D Model Ultra Librarian 1713201022 CAD Model

Description

The 792843 is a specialized backplane connector designed for coplanar and daughtercard applications. Manufactured by Molex, LLC, this connector is part of the Impel 171320 series.

  • Configuration: Receptacle, female sockets
  • Termination: Press-fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package: Tray package
  • Standard Package Quantity: 99 pieces
  • Mounting: Through-hole and right-angle
  • Temperature Range of Operation: -55°C to 85°C
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • REACH Status: Unaffected
  • HTSUS Code: 8536.69.4040
  • Product Status: Active and high-quality
