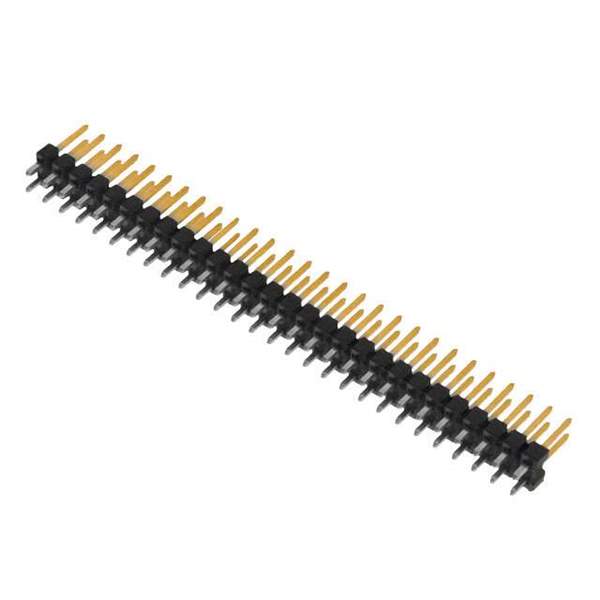

10-89-1561 Real Image
Same model may have multiple batches, images only for reference.

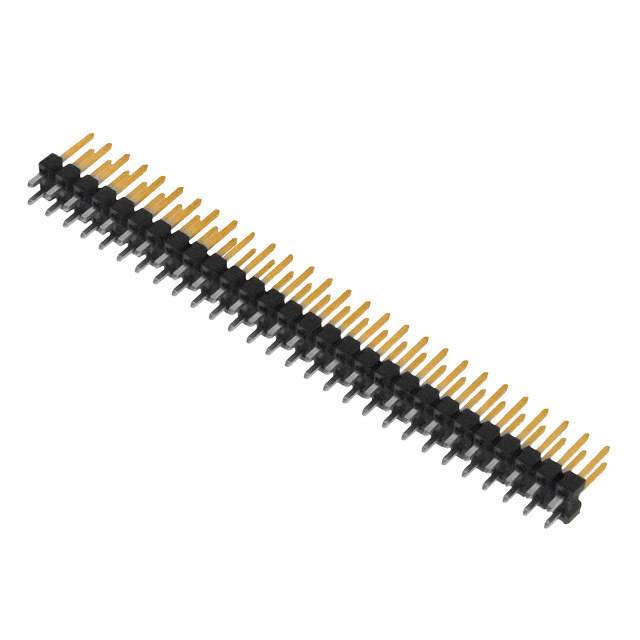

10-89-1561

Part No 10-89-1561
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description Conn Unshrouded Header HDR 56 POS 2.54mm Solder ST Thru-Hole C-Grid® Bag / CONN HEADER 56POS .100 VERT GOLD
Datasheet
10-89-1561 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series C-Grid 8624
Packaging Bulk
Part Status Obsolete(EOL)
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 56
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.107" (2.71mm)
Overall Contact Length 0.437" (11.10mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Win Source Part Number 785111-10-89-1561
Popularity Medium
Supply and Demand Status Balance
Family Name 8624
Introduction Date April 20, 2010
ECCN EAR99
Country of Origin Malaysia, United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 10-89-1561 CAD Model

Description

The Molex C-Grid 8624 series is a 56-position, 2-row, black-colored header connector from Molex.

  • Positions: 56
  • Rows: 2
  • Color: Black
  • Mounting Type: Through Hole
  • Contact Type: Male Pin
  • Termination: Solder
  • Family Name: 8624
  • Applications: Automotive, General Purpose, Lighting, Medical, Telecommunications
  • Halogen-Free: No
  • Estimated EOL Date: Obsolete/End of Life
  • Supply and Demand Status: Balanced
