Part No 0761701038
Manufacturer Molex, LLC
Catalog Backplane Connectors

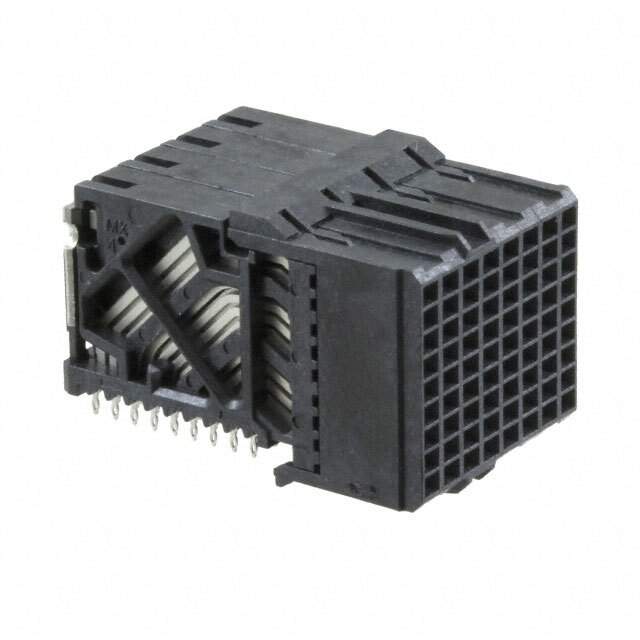

Description CONN RCPT IMPACT 72POS EDGE MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Molex, LLC
Series Impact 76170
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets
Connector Style Impact
Number of Positions 72
Number of Positions Loaded All
Number of Rows 9
Number of Columns 8
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 24 Differential Pairs
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 85°C
Voltage Rating 30V
Base Product Number 076170
Standard Package 357 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853375-0761701038
Ultra Librarian 3D Model Ultra Librarian 0761701038 CAD Model

Description

The Impact 76170 series is a specialized backplane connector designed for high-performance applications.

  • Positions: 72
  • Voltage Rating: 30V
  • Connector Type: Receptacle with Female Sockets
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin
  • Mounting Options: Board Edge, Through-Hole, Right-Angle
  • Operating Temperature: -55°C to 85°C
  • Material Flammability Rating: UL94 V-0
  • Manufacturer: Molex, LLC
  • Standard Package: 357 pcs
