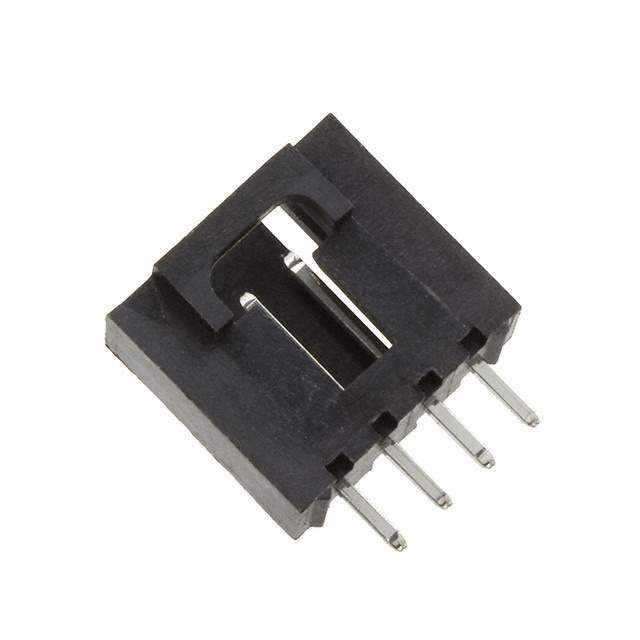

0705430038 Real Image
Same model may have multiple batches, images only for reference.

0705430038

Part No 0705430038
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 2.54mm (.100") Pitch SL™ Header, Single Row, Vertical, .120" Pocket, Shrouded, 4Circuits, Tin (Sn) Plating | CONN HEADER VERT 4POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.130" (3.30mm)
Overall Contact Length 0.470" (11.94mm)
Insulation Height 0.465" (11.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0μin (3.81μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 250V
Contact Finish Thickness - Post 150.0μin (3.81μm)
Applications Automotive, General Purpose, Industrial, Medical
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 750903-0705430038
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0705430038 CAD Model

Description

The Molex 750903-0705430038 is a 4-position header connector with a pitch of 2.54 mm.

  • Contact Type: Male Pin
  • Mounting Type: Through-Hole
  • Voltage Rating: 250 V
  • Applications: Automotive, General Purpose, Industrial Devices
  • Length: 11.94 mm
  • Width: 2.54 mm
  • Height: 11.80 mm
  • RoHS Compliant: Yes
  • Temperature Range: -40 to 105°C
  • Lead-Free: Yes
  • Material Flammability Rating: UL94 V-0
