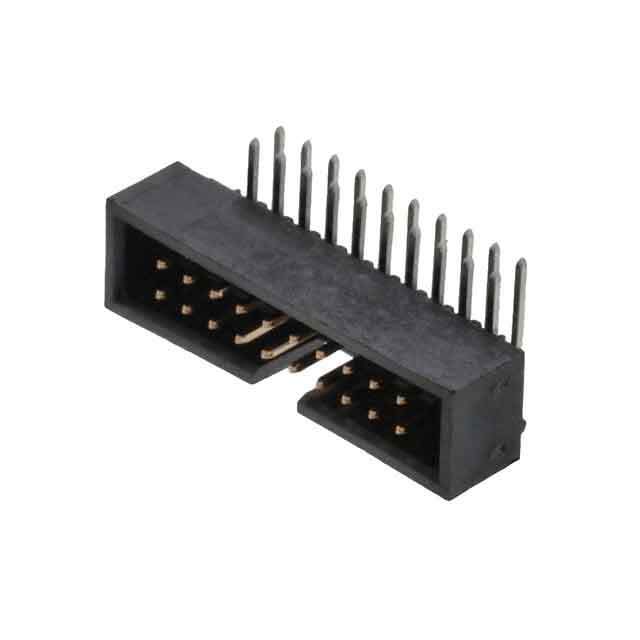

Part No 0702472051
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 20POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 11 Weeks
Features Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)
Manufacturer Molex, LLC
Series C-Grid 70247
Package Tray
Mounting Through Hole, Right Angle
Family Name 070247
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 23-0702472051, 900-0702472051-ND, 702472051, WM24329-ND, 70247-2051, 70247-2051-ND, WM24329
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907770-0702472051
Ultra Librarian 3D Model Ultra Librarian 0702472051 CAD Model

Description

The Molex C-Grid 70247 series connector header is a right angle through-hole component with 20 positions and a 0.100" (2.54mm) pitch.

  • Series: C-Grid 70247
  • Mounting Style: Right Angle Through-Hole
  • Positions: 20
  • Pitch: 0.100" (2.54mm)
  • Family Name: 070247
  • ECCN: EAR99
  • Production Lead Time: 11 weeks
  • Package Type: Tray
  • REACH Status: Unaffected
  • HTSUS Code: 8536.69.4040
  • Other Part Numbers: 23-0702472051, 900-0702472051-ND, 702472051, WM24329-ND, 70247-2051, 70247-2051-ND, and WM24329
