Same model may have multiple batches, images only for reference.

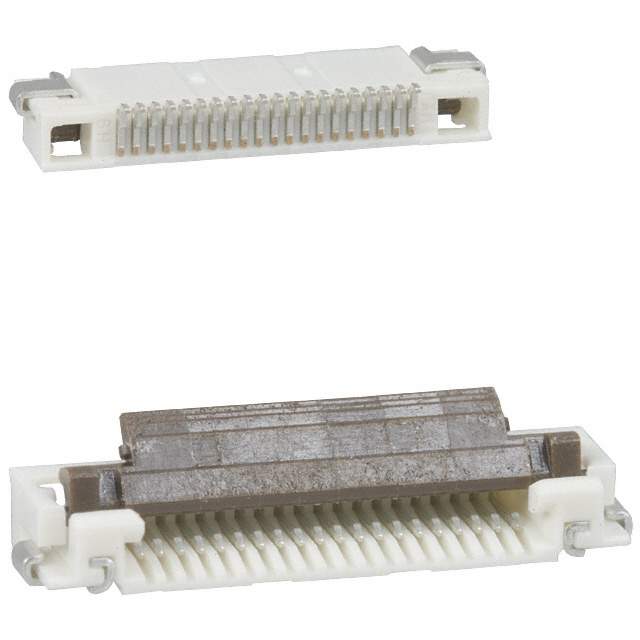

0528922095 Real Image
Same model may have multiple batches, images only for reference.

0528922095

Part No 0528922095
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 20POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 20 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Molex, LLC
Series Easy-On 52892
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -25°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name 052892
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 0528922095-ND, 52892-2019, WM9205CT, 52892-2095, WM1529, 052892-2095-C, 52892-2095-C, 0528922095-C, 528922095, 528922095-C, 52892-2095-ND, WM9205TR, WM9205DKR, WM1529-ND, 052892-2095
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907296-0528922095
Ultra Librarian 3D Model Ultra Librarian 0528922095 CAD Model

Description

The Molex, LLC electronic component with Win Source Part Number 907296-0528922095 is an Easy-On 52892 series product.

  • Package: Reel-TR packaged product
  • Mounting Feature: Surface mount, right angle mounting feature
  • Quantity per Package: 1000
  • MSL Level: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS: 8536.69.4051
  • Other Part Numbers: 0528922095-ND, 52892-2019, WM9205CT, 52892-2095, WM1529, 052892-2095-C, 52892-2095-C, 0528922095-C, 528922095, 528922095-C, 52892-2095-ND, WM9205TR, WM9205DKR, WM1529-ND, and 052892-2095
