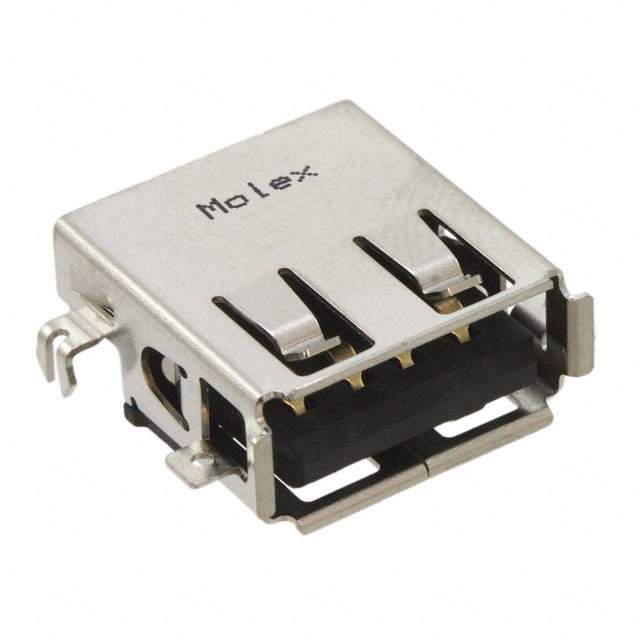

0482580001 Real Image
Same model may have multiple batches, images only for reference.

0482580001

Part No 0482580001
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description Universal Serial Bus (USB) Shielded I/O Receptacle, Type A, Right Angle, Reverse Type, Mid Mount with side flange | CONN RCP USB2.0 TYPEA 4POS TH RA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Cut Tape (CT)
Connector Type USB - A
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Style Board Edge, Cutout; Through Hole, Right Angle
Mounting Feature Horizontal, Mid Mount
Termination Solder
Features Board Lock, Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1.5A
Voltage - Rated 250VAC
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Brass
Material Flammability Rating UL94 V-0
Insulation Color Black
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 750890-0482580001
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 0482580001 CAD Model

Description

The Molex 750890-0482580001 USB-A receptacle connector is a board edge and through hole right angle mounting style connector.

  • Mounting: Board edge and through hole right angle
  • Features: Board lock and solder retention
  • Contact Finish: Gold
  • Shielding: Yes
  • Contacts: Four
  • Voltage Rating: 250VAC
  • Material Flammability Rating: UL94 V-0
  • Mounting Feature: Horizontal mid-mounting
  • Applications: Connectors and interconnects
  • Operating Temperature: -25°C to 85°C
  • Packaging: Cut tape
  • Popularity: Medium
  • Supply and Demand Status: Limited
